Purpose

Use the CONVERT command to convert a tablespace, datafile, or database to the format of a destination platform in preparation for transport across different platforms.

In Oracle Database 10g and later releases, CONVERT DATAFILE or CONVERT TABLESPACE is required in the following scenarios:

One use of CONVERT is to transport a tablespace into a database stored in ASM. Native operating system commands such as Linux cp and Windows COPY cannot read from or write to ASM disk groups.

See Also:

Oracle Database Backup and Recovery User's Guide for a complete discussion of the use of CONVERT DATAFILE, CONVERT TABLESPACE, and CONVERT DATABASE

Prerequisites

The platforms must be supported by the CONVERT command. Query V$TRANSPORTABLE_PLATFORM to determine the supported platforms. Cross-platform tablespace transport is only supported when both the source and destination platforms are contained in this view.

Both source and destination databases must be running with initialization parameter COMPATIBLE set to 10.0.0 or higher. Note the following compatibility prerequisites:

CONVERT TABLESPACE Prerequisites

You can only use CONVERT TABLESPACE when connected as TARGET to the source database and converting tablespaces on the source platform.

The source database must be mounted or open. The tablespaces to be converted must be read-only at the time of the conversion. The state of the destination database is irrelevant when converting tablespaces on the source database.

CONVERT DATAFILE Prerequisites

You can only use CONVERT DATAFILE when connected as TARGET to the destination database and converting datafile copies on the destination platform.

If you are running a CONVERT DATAFILE script generated by CONVERT DATABASE ON DESTINATION, then the destination database instance must be started with the NOMOUNT option. If you are not running a CONVERT DATAFILE script generated by CONVERT DATABASE ON DESTINATION, then the destination database can be started, mounted, or open.

The state of the source database is irrelevant when converting datafile copies on the destination database. However, if you are running a CONVERT DATAFILE script as part of a database conversion on the destination database, and if the script is directly accessing the datafiles on the source database (for example, through an NFS mount), then the source database must be open read-only.

When converting a tablespace on the destination host, you must use CONVERT DATAFILE rather than CONVERT TABLESPACE because the target database cannot associate the datafiles with tablespaces during the conversion. After you have converted the datafiles required for a tablespace, you can transport them into the destination database.

CONVERT DATABASE Prerequisites

You can only use CONVERT DATABASE when connected as TARGET to the source database, which must be opened read-only. The state of the destination database is irrelevant when executing CONVERT DATABASE, even if you run CONVERT DATABASE ON DESTINATION.

Because CONVERT DATABASE uses the same mechanism as CONVERT TABLESPACE and CONVERT DATAFILE to convert the datafiles, the usage notes and restrictions for tablespaces and datafiles also apply.

The primary additional prerequisite for CONVERT DATABASE is that the source and target platforms must share the same endian format. For example, you can transport a database from Microsoft Windows to Linux for x86 (both little-endian), or from HP-UX to AIX (both big-endian), but not from Solaris to Linux x86. You can create a new database on a target platform manually, however, and transport individual tablespaces from the source database with CONVERT TABLESPACE or CONVERT DATAFILE.

Even if the endian formats for the source and destination platform are the same, the datafiles for a transportable database must undergo a conversion on either the source or destination host. Unlike transporting tablespaces across platforms, where conversion is not necessary if the endian formats are the same, transporting an entire database requires that certain types of blocks, such as blocks in undo segments, be reformatted to ensure compatibility with the destination platform.

Usage Notes

Input files are not altered by CONVERT because the conversion is not performed in place. Instead, RMAN writes converted files to a specified output destination.

Datatype Restrictions

CONVERT does not process user datatypes that require endian conversions. To transport objects between databases that are built on underlying types that store data in a platform-specific format, use the Data Pump Import and Export utilities.

Before Oracle Database 10g, CLOBs in a variable-width character set such as UTF8 were stored in an endian-dependent fixed width format. The CONVERT command does not perform conversions on these CLOBs. Instead, RMAN captures the endian format of each LOB column and propagates it to the target database. Subsequent reads of this data by the SQL layer interpret the data correctly based on either endian format and write it out in an endian-independent way if the tablespace is writeable. CLOBs created in Oracle Database 10g and later releases are stored in character set AL16UTF16, which is platform-independent.

See Also:

Oracle Database Administrator's Guide to learn how to transport tablespaces

Syntax

convert::=

Description of convert.gif follows
Description of the illustration convert.gif

(transportOptionList::=, convertOptionList::=)

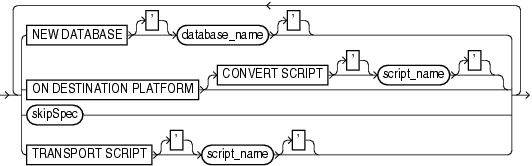

transportOptionList::=

Description of transportoptionlist.gif follows
Description of the illustration transportoptionlist.gif

(skipSpec::=)

skipSpec::=

Description of skipspec.gif follows
Description of the illustration skipspec.gif

convertOptionList::=

Description of convertoptionlist.gif follows
Description of the illustration convertoptionlist.gif

(fileNameConversionSpec::=, formatSpec::=)

formatSpec::=

Description of formatspec.gif follows
Description of the illustration formatspec.gif

Semantics

convert

This clause specifies the objects to be converted: datafiles, tablespaces, or database.

Syntax Element Description
DATABASE Converts the datafiles to the format of the destination platform and ensures the creation of other required database files.

You use CONVERT DATABASE to transport an entire database from a source platform to a destination platform. The source and destination platforms must have the same endian format.

Depending on the situation, you can use CONVERT DATABASE on either the source or destination platform (see Example 2-54). The following parts of the database are not transported directly:

  • Redo logs and control files from the source database are not transported. RMAN creates new control files and redo logs for the target database during the transport and performs an OPEN RESETLOGS after the new database is created. The control file for the converted database does not contain the RMAN repository from the source database. Backups from the source database are not usable with the converted database.

  • BFILEs are not transported. The CONVERT DATABASE output provides a list of objects that use the BFILE datatype, but you must copy the BFILEs manually and fix their locations on the target platform.

  • Datafiles for locally managed temporary tablespaces are not transported. The temporary tablespaces are re-created at the target platform by running the transport script.

  • External tables and directories are not transported. The CONVERT DATABASE output shows a list of affected objects, but you must redefine these objects on the target platform. See Oracle Database Administrator's Guide for more information on managing external tables and directories.

  • Password files are not transported. If a password file was used with the source database, then the output of CONVERT DATABASE includes a list of all user names and their associated privileges. Create a new password file on the target database with this information. See Oracle Database Administrator's Guide for more information on managing password files.

When using CONVERT DATABASE, RMAN detects the following problems and will not proceed until they are fixed:

  • The database has active or in-doubt transactions.

  • The database has save undo segments.

  • The database COMPATIBILITY setting is below 10.

  • Some tablespaces have not been open read/write when the database COMPATIBILITY setting is 10 or higher.
   transportOptionList
 Specifies options that control the transport.

See Also: transportOptionList
[convertOptionList]

DATAFILE 'filename'

convertOptionList

 Specifies the name of a datafile to be transported into a destination database (see Example 2-52).

The CONVERT DATAFILE command is only one part of a multiple-step procedure for transporting datafiles across platforms. You can transport datafiles using your live datafiles with the procedure described in Oracle Database Administrator's Guide or from backups using the procedure described in Oracle Database Backup and Recovery User's Guide. Refer to that document before attempting to transport a tablespace across platforms.

Use FROM PLATFORM in convertOptionList to identify the source platform of the datafiles to be converted. If you do not specify FROM PLATFORM, then the value defaults to the platform of the destination database, that is, the database to which RMAN is connected as TARGET. The destination platform is, implicitly, the platform of the destination host.

You can use CONVERT DATAFILE without FROM PLATFORM or TO PLATFORM to move datafiles into and out of ASM (see Example 2-53). In this case, CONVERT DATAFILE creates datafiles copies that do not belong to the target database. Thus, a LIST DATAFILECOPY command does not display them. The following SQL query shows all converted datafiles that do not belong to the database:

SELECT NAME
FROM   V$DATAFILE_COPY
WHERE  CONVERTED_FILE='YES';

The CONVERT DATAFILE syntax supports multiple format names, so that each datafile can have a separate format. The DATAFILE syntax supports convertOptionList both immediately following the CONVERT keyword and after each DATAFILE 'filename' clause. However, RMAN generates an error in the following situations:

  • Any option in convertOptionList except FORMAT is specified more than once

  • Any option in convertOptionList except FORMAT is specified in the DATAFILE options list when multiple DATAFILE clauses are specified
TABLESPACE tablespace_name

convertOptionList

 Specifies the name of a tablespace in the source database that you intend to transport into the destination database on a different platform (see Example 2-51).

Specify this option to produce datafiles for the specified tablespaces in the format of a different destination platform. You can then transport the converted files to the destination platform.

You can only use CONVERT TABLESPACE when connected as TARGET to the source database and converting on the source platform. The tablespaces to be converted must be read-only at the time of the conversion. You use CONVERT TABLESPACE when the datafiles that you intend to convert are known to the database.

Use TO PLATFORM to identify the destination platform of the tablespaces to be converted. If you do not specify TO PLATFORM, then the value defaults to the platform of the database to which RMAN is connected as TARGET. The source platform is, implicitly, the platform of the source host.

The CONVERT TABLESPACE command is only one part of a multiple-step process for transporting tablespaces across platforms. You can transport tablespaces using your live datafiles with the procedure described in Oracle Database Administrator's Guide or from backups using the procedure described in Oracle Database Backup and Recovery User's Guide. Refer to that document before attempting to transport a tablespace across platforms.

Note: To convert the datafiles of a tablespace on the source host, use CONVERT TABLESPACE ... TO and identify the tablespace to be converted and the destination platform. You should not convert individual datafiles on the source platform with CONVERT DATAFILE because RMAN does not verify that datafiles belong to a read-only tablespace, which means you might convert active datafiles.
convertOptionList
 Specifies options that control the conversion.

See Also: convertOptionList

transportOptionList

This clause specifies options for the datafiles, tablespaces, or database to be transported.

Syntax Element Description
NEW DATABASE database_name Specifies the DB_NAME for the new database produced by the CONVERT DATABASE command.
ON DESTINATION PLATFORM Generates a convert script of CONVERT DATAFILE commands (see CONVERT SCRIPT parameter) that you can run on the destination host to create the database.

Note: When this option is specified, CONVERT generates a script but does not generate converted datafile copies.

This option is useful for avoiding the overhead of the conversion on the source platform, or in cases in which you do not know the destination platform. For example, you may want to publish a transportable tablespace to be used by recipients with many different target platforms.

When you run CONVERT with the ON DESTINATION PLATFORM option, the source database must be open read-only. However, the script generated by CONVERT ON DESTINATION PLATFORM must be run on a database instance that is started NOMOUNT. If the convert script will be reading datafiles from the source database during execution of the CONVERT DATAFILE commands, then the source database must not be open read/write during the execution.
   CONVERT SCRIPT

   script_name

 Specifies the location of the file to contain the convert script generated by CONVERT DATABASE ... ON TARGET PLATFORM.

If not specified, the convert script is not generated.
skipSpec
 Specifies that CONVERT DATABASE should skip inaccessible, offline, or read-only datafiles during the conversion process.
TRANSPORT SCRIPT

script_name

 Specifies the location of the file to contain the transport script generated by CONVERT DATABASE. If omitted, the transport script is not generated.

skipSpec

This subclause specifies which files should be excluded from the conversion.

Syntax Element Description
SKIP Excludes datafiles from the conversion according to the criteria specified by the following keywords.
INACCESSIBLE Specifies that datafiles that cannot be read due to I/O errors should be excluded from the conversion.

A datafile is only considered inaccessible if it cannot be read. Some offline datafiles can still be read because they still exist on disk. Others have been deleted or moved and so cannot be read, making them inaccessible.
OFFLINE Specifies that offline datafiles should be excluded from the conversion.
READONLY Specifies that read-only datafiles should be excluded from the conversion.

convertOptionList

This subclause specifies input and output options for the conversion.

You can use either the FORMAT or fileNameConversionSpec arguments to control the names of the output files generated by the CONVERT command. If you do not specify either, then the rules governing the location of the output files are the same as those governing the output files from a BACKUP AS COPY operation. These rules are described in the backupTypeSpec entry.

Syntax Element Description
fileNameConversionSpec
 A set of string pairs. Whenever any of the input filenames contains one of the first halves of a pair, anywhere in the filename, it will be replaced with the second half of the same pair.You can use as many pairs of replacement strings as required. You can use single or double quotation marks.

See Also: "Duplication with Oracle Managed Files" to learn about restrictions related to ASM and Oracle Managed Files
FORMAT formatSpec Specifies the name template for the output files. See the BACKUP AS COPY command for the format values that are valid here.

If the database to which RMAN is connected as TARGET uses a recovery area, then you must specify the FORMAT clause.

You can use CONVERT ... FORMAT without specifying FROM PLATFORM or TO PLATFORM. If you do not specify platforms, then running CONVERT TABLESPACE on the source database generates datafile copies that are not cataloged. If you run CONVERT DATAFILE on the destination database, and if the datafile copy already uses the same endianess, then the command generates another datafile copy.

As shown in Example 2-53, you can use CONVERT DATAFILE ... FORMAT to convert a datafile into ASM format. For very large datafiles, copying datafiles between hosts consumes a large amount of space. Consider using NFS or disk sharing. You can create a backup on the source host, mount the disk containing the backups on the destination host, and then convert the datafile into ASM.
FROM  PLATFORM 'platform' Specifies the name of the source platform. If not specified, the default is the platform of the database to which RMAN is connected as TARGET.

The specified platform must be one of the platforms listed in the PLATFORM_NAME column of V$TRANSPORTABLE_PLATFORM. You must use the exact name of the source or target platform as a parameter to the CONVERT command. The following SQL statement queries supported Linux platforms:

SELECT PLATFORM_NAME, ENDIAN_FORMAT
FROM   V$TRANSPORTABLE_PLATFORM
WHERE  UPPER(PLATFORM_NAME) LIKE 'LINUX%';
PARALLELISM integer Specifies the number of channels to be used to perform the operation. If not used, then channels allocated or configured for disk determine the number of channels.
TO  PLATFORM 'platform' Specifies the name of the destination platform. If not specified, the default is the platform of the database to which RMAN is connected as TARGET.

The specified platform must be one of the platforms listed in the PLATFORM_NAME column of V$TRANSPORTABLE_PLATFORM. You must use the exact name of the source or target platform as a parameter to the CONVERT command. The following SQL statement queries supported Linux platforms:

SELECT PLATFORM_NAME, ENDIAN_FORMAT
FROM   V$TRANSPORTABLE_PLATFORM
WHERE  UPPER(PLATFORM_NAME) LIKE 'LINUX%';

Examples

Example 2-51 Converting Tablespaces on the Source Platform

Suppose you need to convert tablespaces finance and hr in source database prodlin to the platform format of destination database prodsun. The finance tablespace includes datafiles /disk2/orahome/fin/fin01.dbf and /disk2/orahome/fin/fin02.dbf. The hr tablespace includes datafiles /disk2/orahome/fin/hr01.dbf and /disk2/orahome/fin/hr02.dbf.

The prodlin database runs on Linux host lin01. You query V$DATABASE and discover that platform name is Linux IA (32-bit) and uses a little-endian format. The prodsun database runs on Solaris host sun01. You query V$TRANSPORTABLE_PLATFORM and discover that the PLATFORM_NAME for the Solaris host is Solaris[tm] OE (64-bit), which uses a big-endian format.

You plan to convert the tablespaces on the source host and store the converted datafiles in /tmp/transport_to_solaris/ on host lin01. The example assumes that you have set COMPATIBLE is to 10.0 or greater on the source database.

On source host lin01, you start the RMAN client and run the following commands:

CONNECT TARGET SYS/password@prodlin
SQL 'ALTER TABLESPACE finance READ ONLY';
SQL 'ALTER TABLESPACE hr READ ONLY';
CONVERT TABLESPACE finance, hr
  TO PLATFORM 'Solaris[tm] OE (64-bit)'
  FORMAT '/tmp/transport_to_solaris/%U';

The result is a set of converted datafiles in the /tmp/transport_to_solaris/ directory, with data in the right endian-order for the Solaris 64-bit platform.

From this point, you can follow the rest of the general outline for tablespace transport. Use the Data Pump Export utility to create the file of structural information, if you have not already, move the structural information file and the converted datafiles from /tmp/transport_to_solaris/ to the desired directories on the destination host, and plug the tablespace into the new database with the Data Pump Import utility.

Example 2-52 Converting Datafiles on the Destination Platform

This example assumes that you want to convert the finance and hr tablespaces from a database on host sun01 into a format usable on destination host lin01. You will temporarily store the unconverted datafiles in directory /tmp/transport_from_solaris/ on destination host lin01 and perform the conversion with CONVERT DATAFILE. When you transport the datafiles into the destination database, they will be stored in /disk2/orahome/dbs.

The example assumes that you have carried out the following steps in preparation for the tablespace transport:

  • You used the Data Pump Export utility to create the structural information file (named, in our example, expdat.dmp).

  • You made the finance and hr tablespaces read-only on the source database.

  • You used an operating system utility to copy expdat.dmp and the unconverted datafiles to be transported to the destination host lin01 in the /tmp/transport_from_solaris directory. The datafiles are stored as:

    • /tmp/transport_from_solaris/fin/fin01.dbf

    • /tmp/transport_from_solaris/fin/fin02.dbf

    • /tmp/transport_from_solaris/hr/hr01.dbf

    • /tmp/transport_from_solaris/hr/hr02.dbf

  • You queried the name for the source platform in V$TRANSPORTABLE_PLATFORM and discovered that the PLATFORM_NAME is Solaris[tm] OE (64-bit).

Now use RMAN's CONVERT command to convert the datafiles to be transported to the destination host format and deposit the results in /disk2/orahome/dbs.

Note the following considerations when performing the conversion:

  • Identify the datafiles by filename, not by tablespace name. Until the datafiles are plugged in, the local instance has no way of knowing the intended tablespace names.

  • The FORMAT argument controls the name and location of the converted datafiles.

  • When converting on the destination host, you must specify the source platform with the FROM argument. Otherwise, RMAN assumes that the source platform is the same as the platform of the host performing the conversion.

CONNECT TARGET SYS/password@prodlin
CONVERT DATAFILE
   '/tmp/transport_from_solaris/fin/fin01.dbf',
   '/tmp/transport_from_solaris/fin/fin02.dbf',
   '/tmp/transport_from_solaris/hr/hr01.dbf',
   '/tmp/transport_from_solaris/hr/hr02.dbf'
   DB_FILE_NAME_CONVERT
        '/tmp/transport_from_solaris/fin','/disk2/orahome/dbs/fin',
        '/tmp/transport_from_solaris/hr','/disk2/orahome/dbs/hr'
   FROM PLATFORM 'Solaris[tm] OE (64-bit)';

The result is that the following datafiles have been converted to the Linux format:

  • /disk2/orahome/dbs/fin/fin01.dbf

  • /disk2/orahome/dbs/fin/fin02.dbf

  • /disk2/orahome/dbs/hr/hr01.dbf

  • /disk2/orahome/dbs/hr/hr02.dbf

From this point, follow the rest of the general outline for tablespace transport. Use Data Pump Import to plug the converted tablespaces into the new database, and make the tablespaces read/write if applicable.

Example 2-53 Copying Datafiles to and from ASM with CONVERT DATAFILE

This example illustrates copying datafiles into ASM from normal storage. Note that the generated files are not considered datafile copies that belong to the target database, so LIST DATAFILECOPY does not display them.

Use CONVERT DATAFILE without specifying a source or destination platform. Specify ASM disk group +DATAFILE for the output location, as shown here:

RMAN> CONVERT DATAFILE '/disk1/oracle/dbs/my_tbs_f1.df', '/disk1/oracle/dbs/t_ax1.f'
   FORMAT '+DATAFILE';

Starting conversion at 29-MAY-05
using channel ORA_DISK_1
channel ORA_DISK_1: starting datafile conversion
input filename=/disk1/oracle/dbs/t_ax1.f
converted datafile=+DATAFILE/asmv/datafile/sysaux.280.559534477
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:16
channel ORA_DISK_1: starting datafile conversion
input filename=/disk1/oracle/dbs/my_tbs_f1.df
converted datafile=+DATAFILE/asmv/datafile/my_tbs.281.559534493
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:04
Finished conversion at 29-MAY-05

The following example illustrates copying the datafiles of a tablespace out of ASM storage to directory /tmp, with uniquely generated filenames.

RMAN> CONVERT TABLESPACE tbs_2 FORMAT '/tmp/tbs_2_%U.df';

Starting conversion at 03-JUN-05
using target database control file instead of recovery catalog
allocated channel: ORA_DISK_1
channel ORA_DISK_1: sid=20 devtype=DISK
channel ORA_DISK_1: starting datafile conversion
input datafile fno=00006 name=+DATAFILE/tbs_21.f
converted datafile=/tmp/tbs_2_data_D-L2_I-2786301554_TS-TBS_2_FNO-6_11gm2fq9.df
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting datafile conversion
input datafile fno=00007 name=+DATAFILE/tbs_22.f
converted datafile=/tmp/tbs_2_data_D-L2_I-2786301554_TS-TBS_2_FNO-7_12gm2fqa.df
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting datafile conversion
input datafile fno=00019 name=+DATAFILE/tbs_25.f
converted datafile=/tmp/tbs_2_data_D-L2_I-2786301554_TS-TBS_2_FNO-19_13gm2fqb.df
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting datafile conversion
input datafile fno=00009 name=+DATAFILE/tbs_23.f
converted datafile=/tmp/tbs_2_data_D-L2_I-2786301554_TS-TBS_2_FNO-9_14gm2fqc.df
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting datafile conversion
input datafile fno=00010 name=+DATAFILE/tbs_24.f
converted datafile=/tmp/tbs_2_data_D-L2_I-2786301554_TS-TBS_2_FNO-10_15gm2fqd.df
channel ORA_DISK_1: datafile conversion complete, elapsed time: 00:00:01
Finished conversion at 03-JUN-05

Example 2-54 Transporting a Database to a Different Platform

The arguments to CONVERT DATABASE vary depending on whether you plan to convert the datafiles on the source or destination platform. For a description of the conversion process on source and destination platforms and extended examples, refer to Oracle Database Backup and Recovery User's Guide. Read that discussion in its entirely before attempting a database conversion.

Assume that you want to transport a database on a Linux host to a Windows host. You decide to convert the datafiles on the source host rather than on the destination host. The following example connects RMAN to Linux host lin01 and uses CONVERT DATABASE NEW DATABASE to convert the datafiles and generate the transport script:

CONNECT TARGET SYS/password@lin01
CONVERT DATABASE
  NEW DATABASE 'newdb'
  TRANSPORT SCRIPT '/tmp/convertdb/transportscript'
  TO PLATFORM 'Microsoft Windows IA (32-bit)'
    DB_FILE_NAME_CONVERT '/disk1/oracle/dbs' '/tmp/convertdb';



In the following variation, you want to transport a database running on a Linux host to a Windows host, but you want to convert the datafiles on the destination host rather than the source host. The following example connects RMAN to Linux host lin01 and executes CONVERT DATABASE ON DESTINATION PLATFORM:


CONNECT TARGET SYS/password@lin01
CONVERT DATABASE
  ON DESTINATION PLATFORM
  CONVERT SCRIPT '/tmp/convertdb/convertscript.rman'
  TRANSPORT SCRIPT '/tmp/convertdb/transportscript.sql'
  NEW DATABASE 'newdb'
  FORMAT '/tmp/convertdb/%U';



The CONVERT DATABASE ON DESTINATION PLATFORM command, which is executed on a Linux database, generates a convert script that can be run on the Windows host to convert the datafiles to the Windows format. The CONVERT command also generates a transport script.







Example 2-55 Transporting a Database to a Different Platform and Storage Type


In this scenario, you have a database on a Solaris host named sun01 that you want to move to an AIX host named aix01. The Solaris datafiles are stored in a non-ASM file system, but you want to store the datafiles in ASM on the AIX host.


The following example connects to sun01 and executes CONVERT DATABASE to generate the necessary scripts:


CONNECT TARGET SYS/password@sun01
CONVERT DATABASE
  ON DESTINATION PLATFORM
  CONVERT SCRIPT '/tmp/convert_newdb.rman'
  TRANSPORT SCRIPT '/tmp/transport_newdb.sql'
  NEW DATABASE 'newdb'
  DB_FILE_NAME_CONVERT '/u01/oradata/DBUA/datafile','+DATA';



The convert script will contain statements of the following form, where your_source_platform stands for your source platform:


CONVERT DATAFILE '/u01/oradata/DBUA/datafile/o1_mf_system_2lg3905p_.dbf'
  FROM PLATFORM 'your_source_platform'
  FORMAT '+DATA/o1_mf_system_2lg3905p_.dbf';



To reduce downtime for the conversion, you can use NFS rather than copying datafiles over the network or restoring a backup. For example, you could mount the Solaris files system on the AIX host as /net/solaris/oradata. In this case, you would need to edit the convert script to reference the NFS-mounted directory as the location of the source datafiles to convert, putting the commands into the following form:


CONVERT DATAFILE '/net/solaris/oradata/DBUA/datafile/o1_mf_system_2lg3905p_.dbf'
  FROM PLATFORM 'your_source_platform'
  FORMAT '+DATA/o1_mf_system_2lg3905p_.dbf';



You then connect RMAN to the destination database, in this case aix01, and run the convert script to convert the datafiles. Afterward, you connect SQL*Plus to aix01 and run the transport script to create the database.





















Go to previous page

Previous
Go to next page

Next











Go to Documentation Home

Home
Go to Book List

Book List
Go to Table of Contents

Contents
Go to Index

Index
Go to Master Index

Master Index
Go to Feedback page

Contact Us
