| PL/SQL User's Guide and Reference Release 2 (9.2) Part Number A96624-01 |
|
Knowledge is that area of ignorance that we arrange and classify. --Ambrose Bierce
Many programming techniques use collection types such as arrays, bags, lists, nested tables, sets, and trees. To support these techniques in database applications, PL/SQL provides the datatypes TABLE and VARRAY, which allow you to declare index-by tables, nested tables and variable-size arrays. In this chapter, you learn how those types let you reference and manipulate collections of data as whole objects. You also learn how the datatype RECORD lets you treat related but dissimilar data as a logical unit.
This chapter discusses the following topics:
A collection is an ordered group of elements, all of the same type. It is a general concept that encompasses lists, arrays, and other familiar datatypes. Each element has a unique subscript that determines its position in the collection.
PL/SQL offers these collection types:
Although collections can have only one dimension, you can model multi-dimensional arrays by creating collections whose elements are also collections.
To use collections in an application, you define one or more PL/SQL types, then define variables of those types. You can define collection types in a procedure, function, or package. You can pass collection variables as parameters, to move data between client-side applications and stored subprograms.
To look up data that is more complex than single values, you can store PL/SQL records or SQL object types in collections. Nested tables and varrays can also be attributes of object types.
Within the database, nested tables can be considered one-column database tables. Oracle stores the rows of a nested table in no particular order. But, when you retrieve the nested table into a PL/SQL variable, the rows are given consecutive subscripts starting at 1. That gives you array-like access to individual rows.
PL/SQL nested tables are like one-dimensional arrays. You can model multi-dimensional arrays by creating nested tables whose elements are also nested tables.

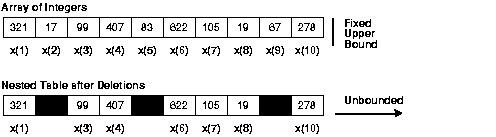

Nested tables differ from arrays in two important ways:
DELETE. That might leave gaps in the index, but the built-in function NEXT lets you iterate over any series of subscripts.
Items of type VARRAY are called varrays. They allow you to associate a single identifier with an entire collection. This association lets you manipulate the collection as a whole and reference individual elements easily. To reference an element, you use standard subscripting syntax (see Figure 5-2). For example, Grade(3) references the third element in varray Grades.
A varray has a maximum size, which you must specify in its type definition. Its index has a fixed lower bound of 1 and an extensible upper bound. For example, the current upper bound for varray Grades is 7, but you can extend it to 8, 9, 10, and so on. Thus, a varray can contain a varying number of elements, from zero (when empty) to the maximum specified in its type definition.
Associative arrays are sets of key-value pairs, where each key is unique and is used to locate a corresponding value in the array. The key can be an integer or a string.
Assigning a value using a key for the first time adds that key to the associative array. Subsequent assignments using the same key update the same entry. It is important to choose a key that is unique, either by using the primary key from a SQL table, or by concatenating strings together to form a unique value.
For example, here is the declaration of an associative array type, and two arrays of that type, using keys that are strings:
DECLARE TYPE population_type IS TABLE OF NUMBER INDEX BY VARCHAR2(64); country_population population_type; continent_population population_type; howmany NUMBER; which VARCHAR2(64) BEGIN country_population('Greenland') := 100000; country_population('Iceland') := 750000; howmany := country_population('Greenland'); continent_population('Australia') := 30000000; continent_population('Antarctica') := 1000; -- Creates new entry continent_population('Antarctica') := 1001; -- Replaces previous value which := continent_population.FIRST; -- Returns 'Antarctica' -- as that comes first alphabetically. which := continent_population.LAST; -- Returns 'Australia' howmany := continent_population(continent_population.LAST); -- Returns the value corresponding to the last key, in this -- case the population of Australia. END; /
Associative arrays help you represent data sets of arbitrary size, with fast lookup for an individual element without knowing its position within the array and without having to loop through all the array elements. It is like a simple version of a SQL table where you can retrieve values based on the primary key. For simple temporary storage of lookup data, associative arrays let you avoid using the disk space and network operations required for SQL tables.
Because associative arrays are intended for temporary data rather than storing persistent data, you cannot use them with SQL statements such as INSERT and SELECT INTO. You can make them persistent for the life of a database session by declaring the type in a package and assigning the values in a package body.
If settings for national language or globalization change during a session that uses associative arrays with VARCHAR2 key values, the program might encounter a runtime error. For example, changing the NLS_COMP or NLS_SORT initialization parameters within a session might cause methods such as NEXT and PRIOR to raise exceptions. If you need to change these settings during the session, make sure to set them back to their original values before performing further operations with these kinds of associative arrays.
When you declare an associative array using a string as the key, the declaration must use a VARCHAR2, STRING, or LONG type. You can use a different type, such as NCHAR or NVARCHAR2, as the key value to reference an associative array. You can even use a type such as DATE, as long as it can be converted to VARCHAR2 by the TO_CHAR function.
However, you must be careful when using other types that the values used as keys are consistent and unique. For example, the string value of SYSDATE might change if the NLS_DATE_FORMAT initialization parameter changes, so that array_element(SYSDATE) does not produce the same result as before. Two different NVARCHAR2 values might turn into the same VARCHAR2 value (containing question marks instead of certain national characters). In that case, array_element(national_string1) and array_element(national_string2) might refer to the same element.
When you pass an associative array as a parameter to a remote database using a database link, the two databases can have different globalization settings. When the remote database performs operations such as FIRST and NEXT, it uses its own character order even if that is different from the order where the collection originated. If character set differences mean that two keys that were unique are not unique on the remote database, the program receives a VALUE_ERROR exception.
If you already have code or business logic that uses some other language, you can usually translate that language's array and set types directly to PL/SQL collection types.
When you are writing original code or designing the business logic from the start, you should consider the strengths of each collection type to decide which is appropriate for each situation.
Both nested tables and associative arrays (formerly known as index-by tables) use similar subscript notation, but they have different characteristics when it comes to persistence and ease of parameter passing.
Nested tables can be stored in a database column, but associative arrays cannot. Nested tables are appropriate for important data relationships that must be stored persistently.
Associative arrays are appropriate for relatively small lookup tables where the collection can be constructed in memory each time a procedure is called or a package is initialized. They are good for collecting information whose volume is unknown beforehand, because there is no fixed limit on their size. Their index values are more flexible, because associative array subscripts can be negative, can be nonsequential, and can use string values instead of numbers when appropriate.
PL/SQL automatically converts between host arrays and associative arrays that use numeric key values. The most efficient way to pass collections to and from the database server is to use anonymous PL/SQL blocks to bulk-bind input and output host arrays to associative arrays.
Varrays are a good choice when the number of elements is known in advance, and when the elements are usually all accessed in sequence. When stored in the database, varrays retain their ordering and subscripts.
Each varray is stored as a single object, either inside the table of which it is a column (if the varray is less than 4KB) or outside the table but still in the same tablespace (if the varray is greater than 4KB). You must update or retrieve all elements of the varray at the same time, which is most appropriate when performing some operation on all the elements at once. But you might find it impractical to store and retrieve large numbers of elements this way.
Nested tables can be sparse: you can delete arbitrary elements, rather than just removing an item from the end. Nested table data is stored out-of-line in a store table, a system-generated database table associated with the nested table. This makes nested tables suitable for queries and updates that only affect some elements of the collection. You cannot rely on the order and subscripts of a nested table remaining stable as the table is stored and retrieved, because the order and subscripts are not preserved when a nested table is stored in the database.
To create collections, you define a collection type, then declare variables of that type. You can define TABLE and VARRAY types in the declarative part of any PL/SQL block, subprogram, or package.
Collections follow the same scoping and instantiation rules as other types and variables. In a block or subprogram, collections are instantiated when you enter the block or subprogram and cease to exist when you exit. In a package, collections are instantiated when you first reference the package and cease to exist when you end the database session.
For nested tables, use the syntax:
TYPEtype_nameIS TABLE OFelement_type[NOT NULL];
type_name is a type specifier used later to declare collections. For nested tables declared within PL/SQL, element_type is any PL/SQL datatype except:
Nested tables declared globally in SQL have additional restrictions on the element type. They cannot use the following element types:
BINARY_INTEGER, PLS_INTEGERBOOLEANLONG, LONG RAWNATURAL, NATURALNPOSITIVE, POSITIVENREF CURSORSIGNTYPESTRINGFor varrays, use the syntax:
TYPEtype_nameIS {VARRAY | VARYING ARRAY} (size_limit) OFelement_type[NOT NULL];
The meanings of type_name and element_type are the same as for nested tables.
size_limit is a positive integer literal representing the maximum number of elements in the array. When defining a VARRAY type, you must specify its maximum size. In the following example, you define a type that stores up to 366 dates:
DECLARE TYPE Calendar IS VARRAY(366) OF DATE;
For associative arrays (also known as index-by tables), use the syntax:
TYPEtype_nameIS TABLE OFelement_type[NOT NULL] INDEX BY [BINARY_INTEGER | PLS_INTEGER | VARCHAR2(size_limit)]; INDEX BYkey_type;
The key_type can be numeric, either BINARY_INTEGER or PLS_INTEGER. It can also be VARCHAR2 or one of its subtypes VARCHAR, STRING, or LONG. You must specify the length of a VARCHAR2-based key, except for LONG which is equivalent to declaring a key type of VARCHAR2(32760). The types RAW, LONG RAW, ROWID, CHAR, and CHARACTER are not allowed as keys for an associative array.
An initialization clause is not required (or allowed).
When you reference an element of an associative array that uses a VARCHAR2-based key, you can use other types, such as DATE or TIMESTAMP, as long as they can be converted to VARCHAR2 with the TO_CHAR function.
Index-by tables can store data using a primary key value as the index, where the key values are not sequential. In the example below, you store a single record in the index-by table, and its subscript is 7468 rather than 1.
DECLARE TYPE EmpTabTyp IS TABLE OF emp%ROWTYPE INDEX BY BINARY_INTEGER; emp_tab EmpTabTyp; BEGIN /* Retrieve employee record. */ SELECT * INTO emp_tab(7468) FROM emp WHERE empno = 7468; END;
To store nested tables and varrays inside database tables, you must also declare SQL types using the CREATE TYPE statement. The SQL types can be used as columns or as attributes of SQL object types.
You can declare equivalent types within PL/SQL, or use the SQL type name in a PL/SQL variable declaration.
The following SQL*Plus script shows how you might declare a nested table in SQL, and use it as an attribute of an object type:
CREATE TYPE CourseList AS TABLE OF VARCHAR2(10) -- define type / CREATE TYPE Student AS OBJECT ( -- create object id_num INTEGER(4), name VARCHAR2(25), address VARCHAR2(35), status CHAR(2), courses CourseList) -- declare nested table as attribute /
The identifier courses represents an entire nested table. Each element of courses will store the code name of a college course such as 'Math 1020'.
The script below creates a database column that stores varrays. Each varray element contains a VARCHAR2.
-- Each project has a 16-character code name. -- We will store up to 50 projects at a time in a database column. CREATE TYPE ProjectList AS VARRAY(50) OF VARCHAR2(16); / CREATE TABLE department ( -- create database table dept_id NUMBER(2), name VARCHAR2(15), budget NUMBER(11,2), -- Each department can have up to 50 projects. projects ProjectList) /
Once you define a collection type, you can declare variables of that type. You use the new type name in the declaration, the same as with predefined types such as NUMBER and INTEGER.
DECLARE TYPE nested_type IS TABLE OF VARCHAR2(20); TYPE varray_type IS VARRAY(50) OF INTEGER; TYPE associative_array_type IS TABLE OF NUMBER INDEXED BY BINARY_INTEGER; v1 nested_type; v2 varray_type; v3 associative_array_type;
You can use %TYPE to specify the datatype of a previously declared collection, so that changing the definition of the collection automatically updates other variables that depend on the number of elements or the element type:
DECLARE TYPE Platoon IS VARRAY(20) OF Soldier; p1 Platoon; -- If we change the number of soldiers in a platoon, p2 will -- reflect that change when this block is recompiled. p2 p1%TYPE;
You can declare collections as the formal parameters of functions and procedures. That way, you can pass collections to stored subprograms and from one subprogram to another. The following example declares a nested table as a parameter of a packaged procedure:
CREATE PACKAGE personnel AS TYPE Staff IS TABLE OF Employee; ... PROCEDURE award_bonuses (members IN Staff); END personnel;
To call PERSONNEL.AWARD_BONUSES from outside the package, you declare a variable of type PERSONNEL.STAFF and pass that variable as the parameter.
You can also specify a collection type in the RETURN clause of a function specification:
DECLARE TYPE SalesForce IS VARRAY(25) OF Salesperson; FUNCTION top_performers (n INTEGER) RETURN SalesForce IS ...
To specify the element type, you can use %TYPE, which provides the datatype of a variable or database column. Also, you can use %ROWTYPE, which provides the rowtype of a cursor or database table. Two examples follow:
DECLARE TYPE EmpList IS TABLE OF emp.ename%TYPE; -- based on column CURSOR c1 IS SELECT * FROM dept; TYPE DeptFile IS VARRAY(20) OF c1%ROWTYPE; -- based on cursor
In the next example, you use a RECORD type to specify the element type:
DECLARE TYPE AnEntry IS RECORD ( term VARCHAR2(20), meaning VARCHAR2(200)); TYPE Glossary IS VARRAY(250) OF AnEntry;
You can also impose a NOT NULL constraint on the element type:
DECLARE TYPE EmpList IS TABLE OF emp.empno%TYPE NOT NULL;
Until you initialize it, a nested table or varray is atomically null: the collection itself is null, not its elements. To initialize a nested table or varray, you use a constructor, a system-defined function with the same name as the collection type. This function "constructs" collections from the elements passed to it.
You must explicitly call a constructor for each varray and nested table variable. (Associative arrays, the third kind of collection, do not use constructors.) Constructor calls are allowed wherever function calls are allowed.
In the following example, you pass multiple elements to the constructor CourseList(), which returns a nested table containing those elements:
DECLARE TYPE CourseList IS TABLE OF VARCHAR2(16); my_courses CourseList; BEGIN my_courses := CourseList('Econ 2010', 'Acct 3401', 'Mgmt 3100'); END;
Because a nested table does not have a declared maximum size, you can put as many elements in the constructor as necessary.
In the next example, you pass three objects to constructor ProjectList(), which returns a varray containing those objects:
DECLARE TYPE ProjectList IS VARRAY(50) OF VARCHAR2(16); accounting_projects ProjectList; BEGIN accounting_projects := ProjectList('Expense Report', 'Outsourcing', 'Auditing'); END;
You need not initialize the whole varray. For example, if a varray has a maximum size of 50, you can pass fewer than 50 elements to its constructor.
Unless you impose the NOT NULL constraint, you can pass null elements to a constructor. An example follows:
BEGIN my_courses := CourseList('Math 3010', NULL, 'Stat 3202');
You can initialize a collection in its declaration, which is a good programming practice:
DECLARE TYPE CourseList IS TABLE OF VARCHAR2(16); my_courses CourseList := CourseList('Art 1111', 'Hist 3100', 'Engl 2005');
If you call a constructor without arguments, you get an empty but non-null collection:
DECLARE TYPE Clientele IS VARRAY(100) OF Customer; vips Clientele := Clientele(); -- initialize empty varray BEGIN IF vips IS NOT NULL THEN -- condition yields TRUE ... END IF; END;
In this case, you can call the collection's EXTEND method to add elements later.
In this example, you insert several scalar values and a CourseList nested table into the SOPHOMORES table.
BEGIN INSERT INTO sophomores VALUES (5035, 'Janet Alvarez', '122 Broad St', 'FT', CourseList('Econ 2010', 'Acct 3401', 'Mgmt 3100'));
In this example, you insert a row into database table DEPARTMENT. The varray constructor ProjectList() provides a value for column PROJECTS.
BEGIN INSERT INTO department VALUES(60, 'Security', 750400, ProjectList('New Badges', 'Track Computers', 'Check Exits'));
Every reference to an element includes a collection name and a subscript enclosed in parentheses. The subscript determines which element is processed. To reference an element, you specify its subscript using the syntax
collection_name(subscript)
where subscript is an expression that yields an integer in most cases, or a VARCHAR2 for associative arrays declared with strings as keys.
The allowed subscript ranges are:
size_limit, where you specify the limit in the declaration.VARCHAR2 length limit in the type declaration, and the database character set.This example shows how to reference an element in the nested table NAMES:
DECLARE TYPE Roster IS TABLE OF VARCHAR2(15); names Roster := Roster('J Hamil', 'D Caruso', 'R Singh'); BEGIN FOR i IN names.FIRST .. names.LAST LOOP IF names(i) = 'J Hamil' THEN NULL; END IF; END LOOP; END;
This example shows that you can reference the elements of a collection in subprogram calls:
DECLARE TYPE Roster IS TABLE OF VARCHAR2(15); names Roster := Roster('J Hamil', 'D Piro', 'R Singh'); i BINARY_INTEGER := 2; BEGIN verify_name(names(i)); -- call procedure END;
One collection can be assigned to another by an INSERT, UPDATE, FETCH, or SELECT statement, an assignment statement, or a subprogram call.
You can assign the value of an expression to a specific element in a collection using the syntax:
collection_name(subscript) :=expression;
where expression yields a value of the type specified for elements in the collection type definition.
This example shows that collections must have the same datatype for an assignment to work. Having the same element type is not enough.
DECLARE TYPE Clientele IS VARRAY(100) OF Customer; TYPE Vips IS VARRAY(100) OF Customer; -- These first two variables have the same datatype. group1 Clientele := Clientele(...); group2 Clientele := Clientele(...); -- This third variable has a similar declaration, -- but is not the same type. group3 Vips := Vips(...); BEGIN -- Allowed because they have the same datatype group2 := group1; -- Not allowed because they have different datatypes group3 := group2; END;
You assign an atomically null nested table or varray to a second nested table or varray. In this case, the second collection must be reinitialized:
DECLARE TYPE Clientele IS TABLE OF VARCHAR2(64); -- This nested table has some values. group1 Clientele := Clientele('Customer 1','Customer 2'); -- This nested table is not initialized ("atomically null"). group2 Clientele; BEGIN -- At first, the test IF group1 IS NULL yields FALSE. -- Then we assign a null nested table to group1. group1 := group2; -- Now the test IF group1 IS NULL yields TRUE. -- We must use another constructor to give it some values. END;
In the same way, assigning the value NULL to a collection makes it atomically null.
Assigning a value to a collection element can cause various exceptions:
VALUE_ERROR. Usually, the subscript must be an integer. Associative arrays can also be declared to have VARCHAR2 subscripts.SUBSCRIPT_BEYOND_COUNT.COLLECTION_IS_NULL.
DECLARE TYPE WordList IS TABLE OF VARCHAR2(5); words WordList; BEGIN /* Assume execution continues despite the raised exceptions. */ -- Raises COLLECTION_IS_NULL. We haven't used a constructor yet. -- This exception applies to varrays and nested tables, but not -- associative arrays which don't need a constructor. words(1) := 10; -- After using a constructor, we can assign values to the elements. words := WordList(10,20,30); -- Any expression that returns a VARCHAR2(5) is OK. words(1) := 'yes'; words(2) := words(1) || 'no'; -- Raises VALUE_ERROR because the assigned value is too long. words(3) := 'longer than 5 characters'; -- Raises VALUE_ERROR because the subscript of a nested table must -- be an integer. words('B') := 'dunno'; -- Raises SUBSCRIPT_BEYOND_COUNT because we only made 3 elements -- in the constructor. To add new ones, we must call the EXTEND -- method first. words(4) := 'maybe'; END;
You can check whether a collection is null, but not test whether two collections are the same. Conditions such as greater than, less than, and so on are also not allowed.
Nested tables and varrays can be atomically null, so they can be tested for nullity:
DECLARE TYPE Staff IS TABLE OF Employee; members Staff; BEGIN -- Condition yields TRUE because we haven't used a constructor. IF members IS NULL THEN ... END;
Collections cannot be directly compared for equality or inequality. For instance, the following IF condition is not allowed:
DECLARE TYPE Clientele IS TABLE OF VARCHAR2(64); group1 Clientele := Clientele('Customer 1', 'Customer 2'); group2 Clientele := Clientele('Customer 1', 'Customer 3'); BEGIN -- Equality test causes compilation error. IF group1 = group2 THEN ... END IF; END;
This restriction also applies to implicit comparisons. For example, collections cannot appear in a DISTINCT, GROUP BY, or ORDER BY list.
If you want to do such comparison operations, you must define your own notion of what it means for collections to be equal or greater than, less than, and so on, and write one or more functions to examine the collections and their elements and return a true or false value.
Collections let you manipulate complex datatypes within PL/SQL. Your program can compute subscripts to process specific elements in memory, and use SQL to store the results in database tables.
In SQL*Plus, you can create SQL types whose definitions correspond to PL/SQL nested tables and varrays:
SQL> CREATE TYPE CourseList AS TABLE OF VARCHAR2(64);
You can use these SQL types as columns in database tables:
SQL> CREATE TABLE department ( 2 name VARCHAR2(20), 3 director VARCHAR2(20), 4 office VARCHAR2(20), 5 courses CourseList) 6 NESTED TABLE courses STORE AS courses_tab;
Each item in column COURSES is a nested table that will store the courses offered by a given department. The NESTED TABLE clause is required whenever a database table has a nested table column. The clause identifies the nested table and names a system-generated store table, in which Oracle stores the nested table data.
Now, you can populate the database table. The table constructor provides values that all go into the single column COURSES:
BEGIN INSERT INTO department VALUES('English', 'Lynn Saunders', 'Breakstone Hall 205', CourseList('Expository Writing', 'Film and Literature', 'Modern Science Fiction', 'Discursive Writing', 'Modern English Grammar', 'Introduction to Shakespeare', 'Modern Drama', 'The Short Story', 'The American Novel')); END;
You can retrieve all the courses offered by the English department into a PL/SQL nested table:
DECLARE english_courses CourseList; BEGIN SELECT courses INTO english_courses FROM department WHERE name = 'English'; END;
Within PL/SQL, you can manipulate the nested table by looping through its elements, using methods such as TRIM or EXTEND, and updating some or all of the elements. Afterwards, you can store the updated table in the database again.
You can revise the list of courses offered by the English Department:
DECLARE new_courses CourseList := CourseList('Expository Writing', 'Film and Literature', 'Discursive Writing', 'Modern English Grammar', 'Realism and Naturalism', 'Introduction to Shakespeare', 'Modern Drama', 'The Short Story', 'The American Novel', '20th-Century Poetry', 'Advanced Workshop in Poetry'); BEGIN UPDATE department SET courses = new_courses WHERE name = 'English'; END;
In SQL*Plus, suppose you define object type Project, as follows:
SQL> CREATE TYPE Project AS OBJECT ( 2 project_no NUMBER(2), 3 title VARCHAR2(35), 4 cost NUMBER(7,2));
Next, you define VARRAY type ProjectList, which stores Project objects:
SQL> CREATE TYPE ProjectList AS VARRAY(50) OF Project;
Finally, you create relational table department, which has a column of type ProjectList, as follows:
SQL> CREATE TABLE department ( 2 dept_id NUMBER(2), 3 name VARCHAR2(15), 4 budget NUMBER(11,2), 5 projects ProjectList);
Each item in column projects is a varray that will store the projects scheduled for a given department.
Now, you are ready to populate relational table department. In the following example, notice how varray constructor ProjectList() provides values for column projects:
BEGIN INSERT INTO department VALUES(30, 'Accounting', 1205700, ProjectList(Project(1, 'Design New Expense Report', 3250), Project(2, 'Outsource Payroll', 12350), Project(3, 'Evaluate Merger Proposal', 2750), Project(4, 'Audit Accounts Payable', 1425))); INSERT INTO department VALUES(50, 'Maintenance', 925300, ProjectList(Project(1, 'Repair Leak in Roof', 2850), Project(2, 'Install New Door Locks', 1700), Project(3, 'Wash Front Windows', 975), Project(4, 'Repair Faulty Wiring', 1350), Project(5, 'Winterize Cooling System', 1125))); INSERT INTO department VALUES(60, 'Security', 750400, ProjectList(Project(1, 'Issue New Employee Badges', 13500), Project(2, 'Find Missing IC Chips', 2750), Project(3, 'Upgrade Alarm System', 3350), Project(4, 'Inspect Emergency Exits', 1900))); END;
In the following example, you update the list of projects assigned to the Security Department:
DECLARE new_projects ProjectList := ProjectList(Project(1, 'Issue New Employee Badges', 13500), Project(2, 'Develop New Patrol Plan', 1250), Project(3, 'Inspect Emergency Exits', 1900), Project(4, 'Upgrade Alarm System', 3350), Project(5, 'Analyze Local Crime Stats', 825)); BEGIN UPDATE department SET projects = new_projects WHERE dept_id = 60; END;
In the next example, you retrieve all the projects for the Accounting Department into a local varray:
DECLARE my_projects ProjectList; BEGIN SELECT projects INTO my_projects FROM department WHERE dept_id = 30; END;
In the final example, you delete the Accounting Department and its project list from table department:
BEGIN DELETE FROM department WHERE dept_id = 30; END;
By default, SQL operations store and retrieve whole collections rather than individual elements. To manipulate the individual elements of a collection with SQL, use the TABLE operator. The TABLE operator uses a subquery to extract the varray or nested table, so that the INSERT, UPDATE, or DELETE statement applies to the nested table rather than the top-level table.
In the following example, you add a row to the History Department nested table stored in column COURSES:
BEGIN -- The TABLE operator makes the statement apply to the nested -- table from the 'History' row of the DEPARTMENT table. INSERT INTO TABLE(SELECT courses FROM department WHERE name = 'History') VALUES('Modern China'); END;
In the next example, you abbreviate the names for some courses offered by the Psychology Department:
BEGIN UPDATE TABLE(SELECT courses FROM department WHERE name = 'Psychology') SET credits = credits + adjustment WHERE course_no IN (2200, 3540); END;
In the following example, you retrieve the title of a specific course offered by the History Department:
DECLARE my_title VARCHAR2(64); BEGIN -- We know that there is one history course with 'Etruscan' -- in the title. This query retrieves the complete title -- from the nested table of courses for the History department. SELECT title INTO my_title FROM TABLE(SELECT courses FROM department WHERE name = 'History') WHERE name LIKE '%Etruscan%'; END;
In the next example, you delete all 5-credit courses offered by the English Department:
BEGIN DELETE TABLE(SELECT courses FROM department WHERE name = 'English') WHERE credits = 5; END;
In the following example, you retrieve the title and cost of the Maintenance Department's fourth project from the varray column projects:
DECLARE my_cost NUMBER(7,2); my_title VARCHAR2(35); BEGIN SELECT cost, title INTO my_cost, my_title FROM TABLE(SELECT projects FROM department WHERE dept_id = 50) WHERE project_no = 4; ... END;
Currently, you cannot reference the individual elements of a varray in an INSERT, UPDATE, or DELETE statement. You must retrieve the entire varray, use PL/SQL procedural statements to add, delete, or update its elements, and then store the changed varray back in the database table.
In the following example, stored procedure ADD_PROJECT inserts a new project into a department's project list at a given position:
CREATE PROCEDURE add_project ( dept_no IN NUMBER, new_project IN Project, position IN NUMBER) AS my_projects ProjectList; BEGIN SELECT projects INTO my_projects FROM department WHERE dept_no = dept_id FOR UPDATE OF projects; my_projects.EXTEND; -- make room for new project /* Move varray elements forward. */ FOR i IN REVERSE position..my_projects.LAST - 1 LOOP my_projects(i + 1) := my_projects(i); END LOOP; my_projects(position) := new_project; -- add new project UPDATE department SET projects = my_projects WHERE dept_no = dept_id; END add_project;
The following stored procedure updates a given project:
CREATE PROCEDURE update_project ( dept_no IN NUMBER, proj_no IN NUMBER, new_title IN VARCHAR2 DEFAULT NULL, new_cost IN NUMBER DEFAULT NULL) AS my_projects ProjectList; BEGIN SELECT projects INTO my_projects FROM department WHERE dept_no = dept_id FOR UPDATE OF projects; /* Find project, update it, then exit loop immediately. */ FOR i IN my_projects.FIRST..my_projects.LAST LOOP IF my_projects(i).project_no = proj_no THEN IF new_title IS NOT NULL THEN my_projects(i).title := new_title; END IF; IF new_cost IS NOT NULL THEN my_projects(i).cost := new_cost; END IF; EXIT; END IF; END LOOP; UPDATE department SET projects = my_projects WHERE dept_no = dept_id; END update_project;
To perform DML operations on a PL/SQL nested table, use the operators TABLE and CAST. This way, you can do set operations on nested tables using SQL notation, without actually storing the nested tables in the database.
The operands of CAST are PL/SQL collection variable and a SQL collection type (created by the CREATE TYPE statement). CAST converts the PL/SQL collection to the SQL type.
The following example counts the number of differences between a revised course list and the original (notice that the number of credits for course 3720 changed from 4 to 3):
DECLARE revised CourseList := CourseList(Course(1002, 'Expository Writing', 3), Course(2020, 'Film and Literature', 4), Course(2810, 'Discursive Writing', 4), Course(3010, 'Modern English Grammar ', 3), Course(3550, 'Realism and Naturalism', 4), Course(3720, 'Introduction to Shakespeare', 3), Course(3760, 'Modern Drama', 4), Course(3822, 'The Short Story', 4), Course(3870, 'The American Novel', 5), Course(4210, '20th-Century Poetry', 4), Course(4725, 'Advanced Workshop in Poetry', 5)); num_changed INTEGER; BEGIN SELECT COUNT(*) INTO num_changed FROM TABLE(CAST(revised AS CourseList)) new, TABLE(SELECT courses FROM department WHERE name = 'English') AS old WHERE new.course_no = old.course_no AND (new.title != old.title OR new.credits != old.credits); dbms_output.put_line(num_changed); END;
In addition to collections of scalar or object types, you can also create collections whose elements are collections. For example, you can create a nested table of varrays, a varray of varrays, a varray of nested tables, and so on.
When creating a nested table of nested tables as a column in SQL, check the syntax of the CREATE TABLE statement to see how to define the storage table.
Here are some examples showing the syntax and possibilities for multilevel collections.
declare type t1 is varray(10) of integer; type nt1 is varray(10) of t1; -- multilevel varray type va t1 := t1(2,3,5); -- initialize multilevel varray nva nt1 := nt1(va, t1(55,6,73), t1(2,4), va); i integer; va1 t1; begin -- multilevel access i := nva(2)(3); -- i will get value 73 dbms_output.put_line(i); -- add a new varray element to nva nva.extend; nva(5) := t1(56, 32); -- replace an inner varray element nva(4) := t1(45,43,67,43345); -- replace an inner integer element nva(4)(4) := 1; -- replaces 43345 with 1 -- add a new element to the 4th varray element -- and store integer 89 into it. nva(4).extend; nva(4)(5) := 89; end; /
declare type tb1 is table of varchar2(20); type ntb1 is table of tb1; -- table of table elements type tv1 is varray(10) of integer; type ntb2 is table of tv1; -- table of varray elements vtb1 tb1 := tb1('one', 'three'); vntb1 ntb1 := ntb1(vtb1); vntb2 ntb2 := ntb2(tv1(3,5), tv1(5,7,3)); -- table of varray elements begin vntb1.extend; vntb1(2) := vntb1(1); -- delete the first element in vntb1 vntb1.delete(1); -- delete the first string from the second table in the nested table vntb1(2).delete(1); end; /
declare type tb1 is table of integer index by binary_integer; -- the following is index-by table of index-by tables type ntb1 is table of tb1 index by binary_integer; type va1 is varray(10) of varchar2(20); -- the following is index-by table of varray elements type ntb2 is table of va1 index by binary_integer; v1 va1 := va1('hello', 'world'); v2 ntb1; v3 ntb2; v4 tb1; v5 tb1; -- empty table begin v4(1) := 34; v4(2) := 46456; v4(456) := 343; v2(23) := v4; v3(34) := va1(33, 456, 656, 343); -- assign an empty table to v2(35) and try again v2(35) := v5; v2(35)(2) := 78; -- it works now end; /
create type t1 is varray(10) of integer; / create table tab1 (c1 t1); insert into tab1 values (t1(2,3,5)); insert into tab1 values (t1(9345, 5634, 432453)); declare type t2 is table of t1; v2 t2; begin select c1 BULK COLLECT INTO v2 from tab1; dbms_output.put_line(v2.count); -- prints 2 end; /
The following collection methods help generalize code, make collections easier to use, and make your applications easier to maintain:
A collection method is a built-in function or procedure that operates on collections and is called using dot notation. The syntax follows:
collection_name.method_name[(parameters)]
Collection methods cannot be called from SQL statements. Also, EXTEND and TRIM cannot be used with associative arrays. EXISTS, COUNT, LIMIT, FIRST, LAST, PRIOR, and NEXT are functions; EXTEND, TRIM, and DELETE are procedures. EXISTS, PRIOR, NEXT, TRIM, EXTEND, and DELETE take parameters corresponding to collection subscripts, which are usually integers but can also be strings for associative arrays.
Only EXISTS can be applied to atomically null collections. If you apply another method to such collections, PL/SQL raises COLLECTION_IS_NULL.
EXISTS(n) returns TRUE if the nth element in a collection exists. Otherwise, EXISTS(n) returns FALSE. Mainly, you use EXISTS with DELETE to maintain sparse nested tables. You can also use EXISTS to avoid raising an exception when you reference a nonexistent element. In the following example, PL/SQL executes the assignment statement only if element i exists:
IF courses.EXISTS(i) THEN courses(i) := new_course; END IF;
When passed an out-of-range subscript, EXISTS returns FALSE instead of raising SUBSCRIPT_OUTSIDE_LIMIT.
COUNT returns the number of elements that a collection currently contains. For instance, if varray projects contains 25 elements, the following IF condition is true:
IF projects.COUNT = 25 THEN ...
COUNT is useful because the current size of a collection is not always known. For example, if you fetch a column of Oracle data into a nested table, how many elements does the table contain? COUNT gives you the answer.
You can use COUNT wherever an integer expression is allowed. In the next example, you use COUNT to specify the upper bound of a loop range:
FOR i IN 1..courses.COUNT LOOP ...
For varrays, COUNT always equals LAST. For nested tables, COUNT normally equals LAST. But, if you delete elements from the middle of a nested table, COUNT becomes smaller than LAST.
When tallying elements, COUNT ignores deleted elements.
For nested tables and associative arrays, which have no maximum size, LIMIT returns NULL. For varrays, LIMIT returns the maximum number of elements that a varray can contain (which you must specify in its type definition, and can change later with the TRIM and EXTEND methods). For instance, if the maximum size of varray PROJECTS is 25 elements, the following IF condition is true:
IF projects.LIMIT = 25 THEN ...
You can use LIMIT wherever an integer expression is allowed. In the following example, you use LIMIT to determine if you can add 15 more elements to varray projects:
IF (projects.COUNT + 15) < projects.LIMIT THEN ...
FIRST and LAST return the first and last (smallest and largest) index numbers in a collection. For an associative array with VARCHAR2 key values, the lowest and highest key values are returned; ordering is based on the binary values of the characters in the string, unless the NLS_COMP initialization parameter is set to ANSI, in which case the ordering is based on the locale-specific sort order specified by the NLS_SORT initialization parameter.
If the collection is empty, FIRST and LAST return NULL.
If the collection contains only one element, FIRST and LAST return the same index value:
IF courses.FIRST = courses.LAST THEN ... -- only one element
The next example shows that you can use FIRST and LAST to specify the lower and upper bounds of a loop range provided each element in that range exists:
FOR i IN courses.FIRST..courses.LAST LOOP ...
In fact, you can use FIRST or LAST wherever an integer expression is allowed. In the following example, you use FIRST to initialize a loop counter:
i := courses.FIRST; WHILE i IS NOT NULL LOOP ...
For varrays, FIRST always returns 1 and LAST always equals COUNT. For nested tables, FIRST normally returns 1. But, if you delete elements from the beginning of a nested table, FIRST returns a number larger than 1. Also for nested tables, LAST normally equals COUNT. But, if you delete elements from the middle of a nested table, LAST becomes larger than COUNT.
When scanning elements, FIRST and LAST ignore deleted elements.
PRIOR(n) returns the index number that precedes index n in a collection. NEXT(n) returns the index number that succeeds index n. If n has no predecessor, PRIOR(n) returns NULL. Likewise, if n has no successor, NEXT(n) returns NULL.
For associative arrays with VARCHAR2 keys, these methods return the appropriate key value; ordering is based on the binary values of the characters in the string, unless the NLS_COMP initialization parameter is set to ANSI, in which case the ordering is based on the locale-specific sort order specified by the NLS_SORT initialization parameter.
These methods are more reliable than looping through a fixed set of subscript values, because elements might be inserted or deleted from the collection during the loop. This is especially true for associative arrays, where the subscripts might not be in consecutive order and so the sequence of subscripts might be (1,2,4,8,16) or ('A','E','I','O','U').
PRIOR and NEXT do not wrap from one end of a collection to the other. For example, the following statement assigns NULL to n because the first element in a collection has no predecessor:
n := courses.PRIOR(courses.FIRST); -- assigns NULL to n
PRIOR is the inverse of NEXT. For instance, if element i exists, the following statement assigns element i to itself:
projects(i) := projects.PRIOR(projects.NEXT(i));
You can use PRIOR or NEXT to traverse collections indexed by any series of subscripts. In the following example, you use NEXT to traverse a nested table from which some elements have been deleted:
i := courses.FIRST; -- get subscript of first element WHILE i IS NOT NULL LOOP -- do something with courses(i) i := courses.NEXT(i); -- get subscript of next element END LOOP;
When traversing elements, PRIOR and NEXT ignore deleted elements.
To increase the size of a nested table or varray, use EXTEND. You cannot use EXTEND with index-by tables.
This procedure has three forms:
EXTEND appends one null element to a collection.EXTEND(n) appends n null elements to a collection.EXTEND(n,i) appends n copies of the ith element to a collection.For example, the following statement appends 5 copies of element 1 to nested table courses:
courses.EXTEND(5,1);
You cannot use EXTEND to initialize an atomically null collection. Also, if you impose the NOT NULL constraint on a TABLE or VARRAY type, you cannot apply the first two forms of EXTEND to collections of that type.
EXTEND operates on the internal size of a collection, which includes any deleted elements. So, if EXTEND encounters deleted elements, it includes them in its tally. PL/SQL keeps placeholders for deleted elements so that you can replace them if you wish. Consider the following example:
DECLARE TYPE CourseList IS TABLE OF VARCHAR2(10); courses CourseList; BEGIN courses := CourseList('Biol 4412', 'Psyc 3112', 'Anth 3001'); courses.DELETE(3); -- delete element 3 /* PL/SQL keeps a placeholder for element 3. So, the next statement appends element 4, not element 3. */ courses.EXTEND; -- append one null element /* Now element 4 exists, so the next statement does not raise SUBSCRIPT_BEYOND_COUNT. */ courses(4) := 'Engl 2005';
When it includes deleted elements, the internal size of a nested table differs from the values returned by COUNT and LAST. For instance, if you initialize a nested table with five elements, then delete elements 2 and 5, the internal size is 5, COUNT returns 3, and LAST returns 4. All deleted elements (whether leading, in the middle, or trailing) are treated alike.
This procedure has two forms:
TRIM removes one element from the end of a collection.TRIM(n) removes n elements from the end of a collection.For example, this statement removes the last three elements from nested table courses:
courses.TRIM(3);
If n is too large, TRIM(n) raises SUBSCRIPT_BEYOND_COUNT.
TRIM operates on the internal size of a collection. So, if TRIM encounters deleted elements, it includes them in its tally. Consider the following example:
DECLARE TYPE CourseList IS TABLE OF VARCHAR2(10); courses CourseList; BEGIN courses := CourseList('Biol 4412', 'Psyc 3112', 'Anth 3001'); courses.DELETE(courses.LAST); -- delete element 3 /* At this point, COUNT equals 2, the number of valid elements remaining. So, you might expect the next statement to empty the nested table by trimming elements 1 and 2. Instead, it trims valid element 2 and deleted element 3 because TRIM includes deleted elements in its tally. */ courses.TRIM(courses.COUNT); dbms_output.put_line(courses(1)); -- prints 'Biol 4412'
In general, do not depend on the interaction between TRIM and DELETE. It is better to treat nested tables like fixed-size arrays and use only DELETE, or to treat them like stacks and use only TRIM and EXTEND.
PL/SQL does not keep placeholders for trimmed elements. So, you cannot replace a trimmed element simply by assigning it a new value.
This procedure has various forms:
DELETE removes all elements from a collection.DELETE(n) removes the nth element from an associative array with a numeric key or a nested table. If the associative array has a string key, the element corresponding to the key value is deleted. If n is null, DELETE(n) does nothing.DELETE(m,n) removes all elements in the range m..n from an associative array or nested table. If m is larger than n or if m or n is null, DELETE(m,n) does nothing.For example:
BEGIN courses.DELETE(2); -- deletes element 2 courses.DELETE(7,7); -- deletes element 7 courses.DELETE(6,3); -- does nothing courses.DELETE(3,6); -- deletes elements 3 through 6 projects.DELETE; -- deletes all elements nicknames.DELETE('Chip'); -- deletes element denoted by this key nicknames.DELETE('Buffy','Fluffy'); -- deletes elements with keys -- in this alphabetic range END;
Varrays are dense, so you cannot delete their individual elements.
If an element to be deleted does not exist, DELETE simply skips it; no exception is raised. PL/SQL keeps placeholders for deleted elements. So, you can replace a deleted element simply by assigning it a new value.
DELETE lets you maintain sparse nested tables. In the following example, you retrieve nested table prospects into a temporary table, prune it, then store it back in the database:
DECLARE my_prospects ProspectList; revenue NUMBER; BEGIN SELECT prospects INTO my_prospects FROM customers WHERE ... FOR i IN my_prospects.FIRST..my_prospects.LAST LOOP estimate_revenue(my_prospects(i), revenue); -- call procedure IF revenue < 25000 THEN my_prospects.DELETE(i); END IF; END LOOP; UPDATE customers SET prospects = my_prospects WHERE ...
The amount of memory allocated to a nested table can increase or decrease dynamically. As you delete elements, memory is freed page by page. If you delete the entire table, all the memory is freed.
Within a subprogram, a collection parameter assumes the properties of the argument bound to it. So, you can apply the built-in collection methods (FIRST, LAST, COUNT, and so on) to such parameters. In the following example, a nested table is declared as the formal parameter of a packaged procedure:
CREATE PACKAGE personnel AS TYPE Staff IS TABLE OF Employee; ... PROCEDURE award_bonuses (members IN Staff); END personnel; CREATE PACKAGE BODY personnel AS ... PROCEDURE award_bonuses (members IN Staff) IS BEGIN ... IF members.COUNT > 10 THEN -- apply method ... END IF; END; END personnel;
Note: For varray parameters, the value of LIMIT is always derived from the parameter type definition, regardless of the parameter mode.
In most cases, if you reference a nonexistent collection element, PL/SQL raises a predefined exception. Consider the following example:
DECLARE TYPE NumList IS TABLE OF NUMBER; nums NumList; -- atomically null BEGIN /* Assume execution continues despite the raised exceptions. */ nums(1) := 1; -- raises COLLECTION_IS_NULL (1) nums := NumList(1,2); -- initialize table nums(NULL) := 3 -- raises VALUE_ERROR (2) nums(0) := 3; -- raises SUBSCRIPT_OUTSIDE_LIMIT (3) nums(3) := 3; -- raises SUBSCRIPT_BEYOND_COUNT (4) nums.DELETE(1); -- delete element 1 IF nums(1) = 1 THEN ... -- raises NO_DATA_FOUND (5)
In the first case, the nested table is atomically null. In the second case, the subscript is null. In the third case, the subscript is outside the legal range. In the fourth case, the subscript exceeds the number of elements in the table. In the fifth case, the subscript designates a deleted element.
The following list shows when a given exception is raised:
In some cases, you can pass invalid subscripts to a method without raising an exception. For instance, when you pass a null subscript to procedure DELETE, it does nothing. Also, you can replace deleted elements without raising NO_DATA_FOUND, as the following example shows:
DECLARE TYPE NumList IS TABLE OF NUMBER; nums NumList := NumList(10,20,30); -- initialize table BEGIN nums.DELETE(-1); -- does not raise SUBSCRIPT_OUTSIDE_LIMIT nums.DELETE(3); -- delete 3rd element dbms_output.put_line(nums.COUNT); -- prints 2 nums(3) := 30; -- allowed; does not raise NO_DATA_FOUND dbms_output.put_line(nums.COUNT); -- prints 3 END;
Packaged collection types and local collection types are never compatible. For example, suppose you want to call the following packaged procedure:
CREATE PACKAGE pkg1 AS TYPE NumList IS VARRAY(25) OF NUMBER(4); PROCEDURE delete_emps (emp_list NumList); END pkg1; CREATE PACKAGE BODY pkg1 AS PROCEDURE delete_emps (emp_list NumList) IS ... ... END pkg1;
When you run the PL/SQL block below, the second procedure call fails with a wrong number or types of arguments error. That is because the packaged and local VARRAY types are incompatible even though their definitions are identical.
DECLARE TYPE NumList IS VARRAY(25) OF NUMBER(4); emps pkg1.NumList := pkg1.NumList(7369, 7499); emps2 NumList := NumList(7521, 7566); BEGIN pkg1.delete_emps(emps); pkg1.delete_emps(emps2); -- causes a compilation error END;
As Figure 5-3 shows, the PL/SQL engine executes procedural statements but sends SQL statements to the SQL engine, which executes the SQL statements and, in some cases, returns data to the PL/SQL engine.
Too many context switches between the PL/SQL and SQL engines can harm performance. That can happen when a loop executes a separate SQL statement for each element of a collection, specifying the collection element as a bind variable. For example, the following DELETE statement is sent to the SQL engine with each iteration of the FOR loop:
DECLARE TYPE NumList IS VARRAY(20) OF NUMBER; depts NumList := NumList(10, 30, 70); -- department numbers BEGIN ... FOR i IN depts.FIRST..depts.LAST LOOP DELETE FROM emp WHERE deptno = depts(i); END LOOP; END;
In such cases, if the SQL statement affects four or more database rows, the use of bulk binds can improve performance considerably.
The assigning of values to PL/SQL variables in SQL statements is called binding. PL/SQL binding operations fall into three categories:
INSERT or UPDATE statement.RETURNING clause of an INSERT, UPDATE, or DELETE statement.SELECT or FETCH statement.A DML statement can transfer all the elements of a collection in a single operation, a process known as bulk binding. If the collection has 20 elements, bulk binding lets you perform the equivalent of 20 SELECT, INSERT, UPDATE, or DELETE statements using a single operation. This technique improves performance by minimizing the number of context switches between the PL/SQL and SQL engines. With bulk binds, entire collections, not just individual elements, are passed back and forth.
To do bulk binds with INSERT, UPDATE, and DELETE statements, you enclose the SQL statement within a PL/SQL FORALL statement.
To do bulk binds with SELECT statements, you include the BULK COLLECT clause in the SELECT statement instead of using INTO.
For full details of the syntax and restrictions for these statements, see "FORALL Statement" and "SELECT INTO Statement".
The following DELETE statement is sent to the SQL engine just once, even though it performs three DELETE operations:
DECLARE TYPE NumList IS VARRAY(20) OF NUMBER; depts NumList := NumList(10, 30, 70); -- department numbers BEGIN FORALL i IN depts.FIRST..depts.LAST DELETE FROM emp WHERE deptno = depts(i); END;
In the example below, 5000 part numbers and names are loaded into index-by tables. All table elements are inserted into a database table twice: first using a FOR loop, then using a FORALL statement. The FORALL version is much faster.
SQL> SET SERVEROUTPUT ON SQL> CREATE TABLE parts (pnum NUMBER(4), pname CHAR(15)); Table created. SQL> GET test.sql 1 DECLARE 2 TYPE NumTab IS TABLE OF NUMBER(4) INDEX BY BINARY_INTEGER; 3 TYPE NameTab IS TABLE OF CHAR(15) INDEX BY BINARY_INTEGER; 4 pnums NumTab; 5 pnames NameTab; 6 t1 NUMBER(5); 7 t2 NUMBER(5); 8 t3 NUMBER(5); 9 10 11 BEGIN 12 FOR j IN 1..5000 LOOP -- load index-by tables 13 pnums(j) := j; 14 pnames(j) := 'Part No. ' || TO_CHAR(j); 15 END LOOP; 16 t1 := dbms_utility.get_time; 17 FOR i IN 1..5000 LOOP -- use FOR loop 18 INSERT INTO parts VALUES (pnums(i), pnames(i)); 19 END LOOP; 20 t2 := dbms_utility.get_time; 21 FORALL i IN 1..5000 -- use FORALL statement 22 INSERT INTO parts VALUES (pnums(i), pnames(i)); 23 get_time(t3); 24 dbms_output.put_line('Execution Time (secs)'); 25 dbms_output.put_line('---------------------'); 26 dbms_output.put_line('FOR loop: ' || TO_CHAR(t2 - t1)); 27 dbms_output.put_line('FORALL: ' || TO_CHAR(t3 - t2)); 28* END; SQL> / Execution Time (secs) --------------------- FOR loop: 32 FORALL: 3 PL/SQL procedure successfully completed.
The keyword FORALL instructs the PL/SQL engine to bulk-bind input collections before sending them to the SQL engine. Although the FORALL statement contains an iteration scheme, it is not a FOR loop. Its syntax follows:
FORALLindexINlower_bound..upper_boundsql_statement;
The index can be referenced only within the FORALL statement and only as a collection subscript. The SQL statement must be an INSERT, UPDATE, or DELETE statement that references collection elements. And, the bounds must specify a valid range of consecutive index numbers. The SQL engine executes the SQL statement once for each index number in the range.
As the following example shows, the bounds of the FORALL loop can apply to part of a collection, not necessarily all the elements:
DECLARE TYPE NumList IS VARRAY(10) OF NUMBER; depts NumList := NumList(20,30,50,55,57,60,70,75,90,92); BEGIN FORALL j IN 4..7 -- bulk-bind only part of varray UPDATE emp SET sal = sal * 1.10 WHERE deptno = depts(j); END;
The SQL statement can reference more than one collection. However, the PL/SQL engine bulk-binds only subscripted collections. So, in the following example, it does not bulk-bind the collection sals, which is passed to the function median:
FORALL i IN 1..20 INSERT INTO emp2 VALUES (enums(i), names(i), median(sals), ...);
In addition to relational tables, the FORALL statement can manipulate object tables, as the following example shows:
CREATE TYPE PNum AS OBJECT (n NUMBER); / CREATE TABLE partno OF PNum; DECLARE TYPE NumTab IS TABLE OF NUMBER; nums NumTab := NumTab(1, 2, 3, 4); TYPE PNumTab IS TABLE OF PNum; pnums PNumTab := PNumTab(PNum(1), PNum(2), PNum(3), PNum(4)); BEGIN FORALL i IN pnums.FIRST..pnums.LAST INSERT INTO partno VALUES(pnums(i)); FORALL i IN nums.FIRST..nums.LAST DELETE FROM partno WHERE n = 2 * nums(i); FORALL i IN nums.FIRST..nums.LAST INSERT INTO partno VALUES(100 + nums(i)); END;
In a FORALL statement, if any execution of the SQL statement raises an unhandled exception, all database changes made during previous executions are rolled back. However, if a raised exception is caught and handled, changes are rolled back to an implicit savepoint marked before each execution of the SQL statement. Changes made during previous executions are not rolled back. For example, suppose you create a database table that stores department numbers and job titles, as follows:
CREATE TABLE emp2 (deptno NUMBER(2), job VARCHAR2(15));
Next, you insert some rows into the table, as follows:
INSERT INTO emp2 VALUES(10, 'Clerk'); INSERT INTO emp2 VALUES(10, 'Clerk'); INSERT INTO emp2 VALUES(20, 'Bookkeeper'); -- 10-char job title INSERT INTO emp2 VALUES(30, 'Analyst'); INSERT INTO emp2 VALUES(30, 'Analyst');
Then, you try to append the 7-character string ' (temp)' to certain job titles using the following UPDATE statement:
DECLARE TYPE NumList IS TABLE OF NUMBER; depts NumList := NumList(10, 20, 30); BEGIN FORALL j IN depts.FIRST..depts.LAST UPDATE emp2 SET job = job || ' (temp)' WHERE deptno = depts(j); -- raises a "value too large" exception EXCEPTION WHEN OTHERS THEN COMMIT; END;
The SQL engine executes the UPDATE statement three times, once for each index number in the specified range, that is, once for depts(10), once for depts(20), and once for depts(30). The first execution succeeds, but the second execution fails because the string value 'Bookkeeper (temp)' is too large for the job column. In this case, only the second execution is rolled back.
When any execution of the SQL statement raises an exception, the FORALL statement halts. In our example, the second execution of the UPDATE statement raises an exception, so the third execution is never done.
To process SQL data manipulation statements, the SQL engine opens an implicit cursor named SQL. This cursor's scalar attributes, %FOUND, %ISOPEN, %NOTFOUND, and %ROWCOUNT, return useful information about the most recently executed SQL data manipulation statement.
The SQL cursor has one composite attribute, %BULK_ROWCOUNT, designed for use with the FORALL statement. This attribute has the semantics of an index-by table. Its ith element stores the number of rows processed by the ith execution of an INSERT, UPDATE or DELETE statement. If the ith execution affects no rows, %BULK_ROWCOUNT(i) returns zero. An example follows:
DECLARE TYPE NumList IS TABLE OF NUMBER; depts NumList := NumList(10, 20, 50); BEGIN FORALL j IN depts.FIRST..depts.LAST UPDATE emp SET sal = sal * 1.10 WHERE deptno = depts(j); -- Did the 3rd UPDATE statement affect any rows? IF SQL%BULK_ROWCOUNT(3) = 0 THEN ... END;
The FORALL statement and %BULK_ROWCOUNT attribute use the same subscripts. For example, if FORALL uses the range 5 .. 10, so does %BULK_ROWCOUNT.
%BULK_ROWCOUNT is usually equal to 1 for inserts, because a typical insert operation affects only a single row. But for the INSERT ... SELECT construct, %BULK_ROWCOUNT might be greater than 1. For example, the FORALL statement below inserts an arbitrary number of rows for each iteration. After each iteration, %BULK_ROWCOUNT returns the number of items inserted:
SET SERVEROUTPUT ON; DECLARE TYPE num_tab IS TABLE OF NUMBER; deptnums num_tab; BEGIN SELECT deptno BULK COLLECT INTO deptnums FROM DEPT; FORALL i IN 1..deptnums.COUNT INSERT INTO emp_by_dept SELECT empno, deptno FROM emp WHERE deptno = deptnums(i); FOR i IN 1..deptnums.COUNT LOOP -- Count how many rows were inserted for each department; that is, -- how many employees are in each department. dbms_output.put_line('Dept '||deptnums(i)||': inserted '|| SQL%BULK_ROWCOUNT(i)||' records'); END LOOP; dbms_output.put_line('Total records inserted =' || SQL%ROWCOUNT); END; /
You can also use the scalar attributes %FOUND, %NOTFOUND, and %ROWCOUNT with bulk binds. For example, %ROWCOUNT returns the total number of rows processed by all executions of the SQL statement.
%FOUND and %NOTFOUND refer only to the last execution of the SQL statement. However, you can use %BULK_ROWCOUNT to infer their values for individual executions. For example, when %BULK_ROWCOUNT(i) is zero, %FOUND and %NOTFOUND are FALSE and TRUE, respectively.
PL/SQL provides a mechanism to handle exceptions raised during the execution of a FORALL statement. This mechanism enables a bulk-bind operation to save information about exceptions and continue processing.
To have a bulk bind complete despite errors, add the keywords SAVE EXCEPTIONS to your FORALL statement. The syntax follows:
FORALL index IN lower_bound..upper_bound SAVE EXCEPTIONS {insert_stmt | update_stmt | delete_stmt}
All exceptions raised during the execution are saved in the new cursor attribute %BULK_EXCEPTIONS, which stores a collection of records. Each record has two fields. The first field, %BULK_EXCEPTIONS(i).ERROR_INDEX, holds the "iteration" of the FORALL statement during which the exception was raised. The second field, %BULK_EXCEPTIONS(i).ERROR_CODE, holds the corresponding Oracle error code.
The values stored by %BULK_EXCEPTIONS always refer to the most recently executed FORALL statement. The number of exceptions is saved in the count attribute of %BULK_EXCEPTIONS, that is, %BULK_EXCEPTIONS.COUNT. Its subscripts range from 1 to COUNT.
If you omit the keywords SAVE EXCEPTIONS, execution of the FORALL statement stops when an exception is raised. In that case, SQL%BULK_EXCEPTIONS.COUNT returns 1, and SQL%BULK_EXCEPTIONS contains just one record. If no exception is raised during execution, SQL%BULK_EXCEPTIONS.COUNT returns 0.
The following example shows how useful the cursor attribute %BULK_EXCEPTIONS can be:
DECLARE TYPE NumList IS TABLE OF NUMBER; num_tab NumList := NumList(10,0,11,12,30,0,20,199,2,0,9,1); errors NUMBER; dml_errors EXCEPTION; PRAGMA exception_init(dml_errors, -24381); BEGIN FORALL i IN num_tab.FIRST..num_tab.LAST SAVE EXCEPTIONS DELETE FROM emp WHERE sal > 500000/num_tab(i); EXCEPTION WHEN dml_errors THEN errors := SQL%BULK_EXCEPTIONS.COUNT; dbms_output.put_line('Number of errors is ' || errors); FOR i IN 1..errors LOOP dbms_output.put_line('Error ' || i || ' occurred during '|| 'iteration ' || SQL%BULK_EXCEPTIONS(i).ERROR_INDEX); dbms_output.put_line('Oracle error is ' || SQLERRM(-SQL%BULK_EXCEPTIONS(i).ERROR_CODE)); END LOOP; END;
In this example, PL/SQL raised the predefined exception ZERO_DIVIDE when i equaled 2, 6, 10. After the bulk-bind completed, SQL%BULK_EXCEPTIONS.COUNT returned 3, and the contents of SQL%BULK_EXCEPTIONS were (2,1476), (6,1476), and (10,1476). To get the Oracle error message (which includes the code), we negated the value of SQL%BULK_EXCEPTIONS(i).ERROR_CODE and passed the result to the error-reporting function SQLERRM, which expects a negative number. Here is the output:
Number of errors is 3Error 1 occurred during iteration 2Oracle error is ORA-01476: divisor is equal to zeroError 2 occurred during iteration 6Oracle error is ORA-01476: divisor is equal to zeroError 3 occurred during iteration 10Oracle error is ORA-01476: divisor is equal to zeroThe keywords BULK COLLECT tell the SQL engine to bulk-bind output collections before returning them to the PL/SQL engine. You can use these keywords in the SELECT INTO, FETCH INTO, and RETURNING INTO clauses. Here is the syntax:
... BULK COLLECT INTO collection_name[, collection_name] ...
The SQL engine bulk-binds all collections referenced in the INTO list. The corresponding columns can store scalar or composite values including objects. In the following example, the SQL engine loads the entire empno and ename database columns into nested tables before returning the tables to the PL/SQL engine:
DECLARE TYPE NumTab IS TABLE OF emp.empno%TYPE; TYPE NameTab IS TABLE OF emp.ename%TYPE; enums NumTab; -- no need to initialize names NameTab; BEGIN SELECT empno, ename BULK COLLECT INTO enums, names FROM emp; ... END;
In the next example, the SQL engine loads all the values in an object column into a nested table before returning the table to the PL/SQL engine:
CREATE TYPE Coords AS OBJECT (x NUMBER, y NUMBER); CREATE TABLE grid (num NUMBER, loc Coords); INSERT INTO grid VALUES(10, Coords(1,2)); INSERT INTO grid VALUES(20, Coords(3,4)); DECLARE TYPE CoordsTab IS TABLE OF Coords; pairs CoordsTab; BEGIN SELECT loc BULK COLLECT INTO pairs FROM grid; -- now pairs contains (1,2) and (3,4) END;
The SQL engine initializes and extends collections for you. (However, it cannot extend varrays beyond their maximum size.) Then, starting at index 1, it inserts elements consecutively and overwrites any pre-existent elements.
The SQL engine bulk-binds entire database columns. So, if a table has 50,000 rows, the engine loads 50,000 column values into the target collection. However, you can use the pseudocolumn ROWNUM to limit the number of rows processed. In the following example, you limit the number of rows to 100:
DECLARE TYPE SalList IS TABLE OF emp.sal%TYPE; sals SalList; BEGIN SELECT sal BULK COLLECT INTO sals FROM emp WHERE ROWNUM <= 100; ... END;
You can bulk-fetch from a cursor into one or more collections:
DECLARE TYPE NameList IS TABLE OF emp.ename%TYPE; TYPE SalList IS TABLE OF emp.sal%TYPE; CURSOR c1 IS SELECT ename, sal FROM emp WHERE sal > 1000; names NameList; sals SalList; BEGIN OPEN c1; FETCH c1 BULK COLLECT INTO names, sals; END;
You can bulk-fetch from a cursor into a collection of records:
DECLARE TYPE DeptRecTab IS TABLE OF dept%ROWTYPE; dept_recs DeptRecTab; CURSOR c1 IS SELECT deptno, dname, loc FROM dept WHERE deptno > 10; BEGIN OPEN c1; FETCH c1 BULK COLLECT INTO dept_recs; END;
The optional LIMIT clause, allowed only in bulk (not scalar) FETCH statements, lets you limit the number of rows fetched from the database. The syntax is
FETCH ... BULK COLLECT INTO ... [LIMIT rows];
where rows can be a literal, variable, or expression but must evaluate to a number. Otherwise, PL/SQL raises the predefined exception VALUE_ERROR. If the number is not positive, PL/SQL raises INVALID_NUMBER. If necessary, PL/SQL rounds the number to the nearest integer.
In the example below, with each iteration of the loop, the FETCH statement fetches ten rows (or less) into index-by table empnos. The previous values are overwritten.
DECLARE TYPE NumTab IS TABLE OF NUMBER INDEX BY BINARY_INTEGER; CURSOR c1 IS SELECT empno FROM emp; empnos NumTab; rows NATURAL := 10; BEGIN OPEN c1; LOOP /* The following statement fetches 10 rows (or less). */ FETCH c1 BULK COLLECT INTO empnos LIMIT rows; EXIT WHEN c1%NOTFOUND; ... END LOOP; CLOSE c1; END;
You can use the BULK COLLECT clause in the RETURNING INTO clause of an INSERT, UPDATE, or DELETE statement, as the following example shows:
DECLARE TYPE NumList IS TABLE OF emp.empno%TYPE; enums NumList; BEGIN DELETE FROM emp WHERE deptno = 20 RETURNING empno BULK COLLECT INTO enums; -- if there were five employees in department 20, -- then enums contains five employee numbers END;
The following restrictions apply to the BULK COLLECT clause:
BULK COLLECT clause only in server-side programs (not in client-side programs). Otherwise, you get the error this feature is not supported in client-side programs.BULK COLLECT INTO clause must be collections, as the following example shows:
DECLARE TYPE NameList IS TABLE OF emp.ename%TYPE; names NameList; salary emp.sal%TYPE; BEGIN SELECT ename, sal BULK COLLECT INTO names, salary -- illegal target FROM emp WHERE ROWNUM < 50; ... END;
RETURNING INTO clause. Otherwise, you get the error unsupported feature with RETURNING clause.BULK COLLECT INTO clause.BULK COLLECT INTO clause.You can combine the BULK COLLECT clause with a FORALL statement, in which case, the SQL engine bulk-binds column values incrementally. In the following example, if collection depts has 3 elements, each of which causes 5 rows to be deleted, then collection enums has 15 elements when the statement completes:
FORALL j IN depts.FIRST..depts.LAST DELETE FROM emp WHERE empno = depts(j) RETURNING empno BULK COLLECT INTO enums;
The column values returned by each execution are added to the values returned previously. (With a FOR loop, the previous values are overwritten.)
You cannot use the SELECT ... BULK COLLECT statement in a FORALL statement. Otherwise, you get the error implementation restriction: cannot use FORALL and BULK COLLECT INTO together in SELECT statements.
Client-side programs can use anonymous PL/SQL blocks to bulk-bind input and output host arrays. In fact, that is the most efficient way to pass collections to and from the database server.
Host arrays are declared in a host environment such as an OCI or Pro*C program and must be prefixed with a colon to distinguish them from PL/SQL collections. In the example below, an input host array is used in a DELETE statement. At run time, the anonymous PL/SQL block is sent to the database server for execution.
DECLARE ... BEGIN -- assume that values were assigned to the host array -- and host variables in the host environment FORALL i IN :lower..:upper DELETE FROM emp WHERE deptno = :depts(i); ... END;
A record is a group of related data items stored in fields, each with its own name and datatype. Suppose you have various data about an employee such as name, salary, and hire date. These items are logically related but dissimilar in type. A record containing a field for each item lets you treat the data as a logical unit. Thus, records make it easier to organize and represent information.
The attribute %ROWTYPE lets you declare a record that represents a row in a database table. However, you cannot specify the datatypes of fields in the record or declare fields of your own. The datatype RECORD lifts those restrictions and lets you define your own records.
To create records, you define a RECORD type, then declare records of that type. You can define RECORD types in the declarative part of any PL/SQL block, subprogram, or package using the syntax
TYPE type_name IS RECORD (field_declaration[,field_declaration]...);
where field_declaration stands for
field_name field_type [[NOT NULL] {:= | DEFAULT} expression]
and where type_name is a type specifier used later to declare records, field_type is any PL/SQL datatype except REF CURSOR, and expression yields a value of the same type as field_type.
Note: Unlike VARRAY and (nested) TABLE types, RECORD types cannot be CREATEd and stored in the database.
You can use %TYPE and %ROWTYPE to specify field types. In the following example, you define a RECORD type named DeptRec:
DECLARE TYPE DeptRec IS RECORD ( dept_id dept.deptno%TYPE, dept_name VARCHAR2(14), dept_loc VARCHAR2(13)); BEGIN ... END;
Notice that field declarations are like variable declarations. Each field has a unique name and specific datatype. So, the value of a record is actually a collection of values, each of some simpler type.
As the example below shows, PL/SQL lets you define records that contain objects, collections, and other records (called nested records). However, object types cannot have attributes of type RECORD.
DECLARE TYPE TimeRec IS RECORD ( seconds SMALLINT, minutes SMALLINT, hours SMALLINT); TYPE FlightRec IS RECORD ( flight_no INTEGER, plane_id VARCHAR2(10), captain Employee, -- declare object passengers PassengerList, -- declare varray depart_time TimeRec, -- declare nested record airport_code VARCHAR2(10)); BEGIN ... END;
The next example shows that you can specify a RECORD type in the RETURN clause of a function specification. That allows the function to return a user-defined record of the same type.
DECLARE TYPE EmpRec IS RECORD ( emp_id NUMBER(4) last_name VARCHAR2(10), dept_num NUMBER(2), job_title VARCHAR2(9), salary NUMBER(7,2)); ... FUNCTION nth_highest_salary (n INTEGER) RETURN EmpRec IS ... BEGIN ... END;
Once you define a RECORD type, you can declare records of that type, as the example below shows. The identifier item_info represents an entire record.
DECLARE TYPE StockItem IS RECORD ( item_no INTEGER(3), description VARCHAR2(50), quantity INTEGER, price REAL(7,2)); item_info StockItem; -- declare record BEGIN ... END;
Like scalar variables, user-defined records can be declared as the formal parameters of procedures and functions. An example follows:
DECLARE TYPE EmpRec IS RECORD ( emp_id emp.empno%TYPE, last_name VARCHAR2(10), job_title VARCHAR2(9), salary NUMBER(7,2)); ... PROCEDURE raise_salary (emp_info EmpRec); BEGIN ... END;
The example below shows that you can initialize a record in its type definition. When you declare a record of type TimeRec, its three fields assume an initial value of zero.
DECLARE TYPE TimeRec IS RECORD ( secs SMALLINT := 0, mins SMALLINT := 0, hrs SMALLINT := 0); BEGIN ... END;
The next example shows that you can impose the NOT NULL constraint on any field, and so prevent the assigning of nulls to that field. Fields declared as NOT NULL must be initialized.
DECLARE TYPE StockItem IS RECORD ( item_no INTEGER(3) NOT NULL := 999, description VARCHAR2(50), quantity INTEGER, price REAL(7,2)); BEGIN ... END;
Unlike elements in a collection, which are accessed using subscripts, fields in a record are accessed by name. To reference an individual field, use dot notation and the following syntax:
record_name.field_name
For example, you reference field hire_date in record emp_info as follows:
emp_info.hire_date ...
When calling a function that returns a user-defined record, use the following syntax to reference fields in the record:
function_name(parameter_list).field_name
For example, the following call to function nth_highest_sal references the field salary in record emp_info:
DECLARE TYPE EmpRec IS RECORD ( emp_id NUMBER(4), job_title VARCHAR2(9), salary NUMBER(7,2)); middle_sal NUMBER(7,2); FUNCTION nth_highest_sal (n INTEGER) RETURN EmpRec IS emp_info EmpRec; BEGIN ... RETURN emp_info; -- return record END; BEGIN middle_sal := nth_highest_sal(10).salary; -- call function ... END;
When calling a parameterless function, use the following syntax:
function_name().field_name -- note empty parameter list
To reference nested fields in a record returned by a function, use extended dot notation. The syntax follows:
function_name(parameter_list).field_name.nested_field_name
For instance, the following call to function item references the nested field minutes in record item_info:
DECLARE TYPE TimeRec IS RECORD (minutes SMALLINT, hours SMALLINT); TYPE AgendaItem IS RECORD ( priority INTEGER, subject VARCHAR2(100), duration TimeRec); FUNCTION item (n INTEGER) RETURN AgendaItem IS item_info AgendaItem; BEGIN ... RETURN item_info; -- return record END; BEGIN ... IF item(3).duration.minutes > 30 THEN ... -- call function END;
Also, use extended dot notation to reference the attributes of an object stored in a field, as the following example shows:
DECLARE TYPE FlightRec IS RECORD ( flight_no INTEGER, plane_id VARCHAR2(10), captain Employee, -- declare object passengers PassengerList, -- declare varray depart_time TimeRec, -- declare nested record airport_code VARCHAR2(10)); flight FlightRec; BEGIN ... IF flight.captain.name = 'H Rawlins' THEN ... END;
To set all the fields in a record to null, simply assign to it an uninitialized record of the same type, as shown in the following example:
DECLARE TYPE EmpRec IS RECORD ( emp_id emp.empno%TYPE, job_title VARCHAR2(9), salary NUMBER(7,2)); emp_info EmpRec; emp_null EmpRec; BEGIN emp_info.emp_id := 7788; emp_info.job_title := 'ANALYST'; emp_info.salary := 3500; emp_info := emp_null; -- nulls all fields in emp_info ... END;
You can assign the value of an expression to a specific field in a record using the following syntax:
record_name.field_name := expression;
In the following example, you convert an employee name to upper case:
emp_info.ename := UPPER(emp_info.ename);
Instead of assigning values separately to each field in a record, you can assign values to all fields at once. This can be done in two ways. First, you can assign one user-defined record to another if they have the same datatype. Having fields that match exactly is not enough. Consider the following example:
DECLARE TYPE DeptRec IS RECORD ( dept_num NUMBER(2), dept_name VARCHAR2(14)); TYPE DeptItem IS RECORD ( dept_num NUMBER(2), dept_name VARCHAR2(14)); dept1_info DeptRec; dept2_info DeptItem; BEGIN ... dept1_info := dept2_info; -- illegal; different datatypes END;
As the next example shows, you can assign a %ROWTYPE record to a user-defined record if their fields match in number and order, and corresponding fields have compatible datatypes:
DECLARE TYPE DeptRec IS RECORD ( dept_num NUMBER(2), dept_name VARCHAR2(14), location VARCHAR2(13)); dept1_info DeptRec; dept2_info dept%ROWTYPE; BEGIN SELECT * INTO dept2_info FROM dept WHERE deptno = 10; dept1_info := dept2_info; ... END;
Second, you can use the SELECT or FETCH statement to fetch column values into a record, as the example below shows. The columns in the select-list must appear in the same order as the fields in your record.
DECLARE TYPE DeptRec IS RECORD ( dept_num NUMBER(2), dept_name VARCHAR2(14), location VARCHAR2(13)); dept_info DeptRec; BEGIN SELECT * INTO dept_info FROM dept WHERE deptno = 20; ... END;
However, you cannot assign a list of values to a record using an assignment statement. The following syntax is not allowed:
record_name := (value1, value2, value3, ...); -- not allowed
The example below shows that you can assign one nested record to another if they have the same datatype. Such assignments are allowed even if the enclosing records have different datatypes.
DECLARE TYPE TimeRec IS RECORD (mins SMALLINT, hrs SMALLINT); TYPE MeetingRec IS RECORD ( day DATE, time_of TimeRec, -- nested record room_no INTEGER(4)); TYPE PartyRec IS RECORD ( day DATE, time_of TimeRec, -- nested record place VARCHAR2(25)); seminar MeetingRec; party PartyRec; BEGIN ... party.time_of := seminar.time_of; END;
Records cannot be tested for nullity, equality, or inequality. For instance, the following IF conditions are not allowed:
BEGIN ... IF emp_info IS NULL THEN ... -- illegal IF dept2_info > dept1_info THEN ... -- illegal END;
The datatype RECORD lets you collect information about the attributes of something. The information is easy to manipulate because you can refer to the collection as a whole. In the following example, you collect accounting figures from database tables assets and liabilities, then use ratio analysis to compare the performance of two subsidiary companies:
DECLARE TYPE FiguresRec IS RECORD (cash REAL, notes REAL, ...); sub1_figs FiguresRec; sub2_figs FiguresRec; FUNCTION acid_test (figs FiguresRec) RETURN REAL IS ... BEGIN SELECT cash, notes, ... INTO sub1_figs FROM assets, liabilities WHERE assets.sub = 1 AND liabilities.sub = 1; SELECT cash, notes, ... INTO sub2_figs FROM assets, liabilities WHERE assets.sub = 2 AND liabilities.sub = 2; IF acid_test(sub1_figs) > acid_test(sub2_figs) THEN ... ... END;
Notice how easy it is to pass the collected figures to the function acid_test, which computes a financial ratio.
In SQL*Plus, suppose you define object type Passenger, as follows:
SQL> CREATE TYPE Passenger AS OBJECT( 2 flight_no NUMBER(3), 3 name VARCHAR2(20), 4 seat CHAR(5));
Next, you define VARRAY type PassengerList, which stores Passenger objects:
SQL> CREATE TYPE PassengerList AS VARRAY(300) OF Passenger;
Finally, you create relational table flights, which has a column of type PassengerList, as follows:
SQL> CREATE TABLE flights ( 2 flight_no NUMBER(3), 3 gate CHAR(5), 4 departure CHAR(15), 5 arrival CHAR(15), 6 passengers PassengerList);
Each item in column passengers is a varray that will store the passenger list for a given flight. Now, you can populate database table flights, as follows:
BEGIN INSERT INTO flights VALUES(109, '80', 'DFW 6:35PM', 'HOU 7:40PM', PassengerList(Passenger(109, 'Paula Trusdale', '13C'), Passenger(109, 'Louis Jemenez', '22F'), Passenger(109, 'Joseph Braun', '11B'), ...)); INSERT INTO flights VALUES(114, '12B', 'SFO 9:45AM', 'LAX 12:10PM', PassengerList(Passenger(114, 'Earl Benton', '23A'), Passenger(114, 'Alma Breckenridge', '10E'), Passenger(114, 'Mary Rizutto', '11C'), ...)); INSERT INTO flights VALUES(27, '34', 'JFK 7:05AM', 'MIA 9:55AM', PassengerList(Passenger(27, 'Raymond Kiley', '34D'), Passenger(27, 'Beth Steinberg', '3A'), Passenger(27, 'Jean Lafevre', '19C'), ...)); END;
In the example below, you fetch rows from database table flights into record flight_info. That way, you can treat all the information about a flight, including its passenger list, as a logical unit.
DECLARE TYPE FlightRec IS RECORD ( flight_no NUMBER(3), gate CHAR(5), departure CHAR(15), arrival CHAR(15), passengers PassengerList); flight_info FlightRec; CURSOR c1 IS SELECT * FROM flights; seat_not_available EXCEPTION; BEGIN OPEN c1; LOOP FETCH c1 INTO flight_info; EXIT WHEN c1%NOTFOUND; FOR i IN 1..flight_info.passengers.LAST LOOP IF flight_info.passengers(i).seat = 'NA' THEN dbms_output.put_line(flight_info.passengers(i).name); RAISE seat_not_available; END IF; ... END LOOP; END LOOP; CLOSE c1; EXCEPTION WHEN seat_not_available THEN ... END;
A PL/SQL-only extension of the INSERT statement lets you insert records into database rows using a single variable of type RECORD or %ROWTYPE instead of a list of fields. That makes your code more readable and maintainable.
The number of fields in the record must equal the number of columns listed in the INTO clause, and corresponding fields and columns must have compatible datatypes. To make sure the record is compatible with the table, you might find it most convenient to declare the variable as the type table_name%ROWTYPE.
This example declares a record variable using a %ROWTYPE qualifier. You can insert this variable without specifying a column list. The %ROWTYPE declaration ensures that the record attributes have exactly the same names and types as the table columns.
DECLARE dept_info dept%ROWTYPE; BEGIN -- deptno, dname, and loc are the table columns. -- The record picks up these names from the %ROWTYPE. dept_info.deptno := 70; dept_info.dname := 'PERSONNEL'; dept_info.loc := 'DALLAS'; -- Using the %ROWTYPE means we can leave out the column list -- (deptno, dname, loc) from the INSERT statement. INSERT INTO dept VALUES dept_info; END;
A PL/SQL-only extension of the UPDATE statement lets you update database rows using a single variable of type RECORD or %ROWTYPE instead of a list of fields.
The number of fields in the record must equal the number of columns listed in the SET clause, and corresponding fields and columns must have compatible datatypes.
You can use the keyword ROW to represent an entire row:
DECLARE dept_info dept%ROWTYPE; BEGIN dept_info.deptno := 30; dept_info.dname := 'MARKETING'; dept_info.loc := 'ATLANTA'; -- The row will have values for the filled-in columns, and null -- for any other columns. UPDATE dept SET ROW = dept_info WHERE deptno = 30; END;
The keyword ROW is allowed only on the left side of a SET clause.
You cannot use ROW with a subquery. For example, the following UPDATE statement is not allowed:
UPDATE emp SET ROW = (SELECT * FROM mgrs); -- not allowed
Records containing object types are allowed:
CREATE TYPE Worker AS OBJECT (name VARCHAR2(25), dept VARCHAR2(15)); / CREATE TABLE teams (team_no NUMBER, team_member Worker); DECLARE team_rec teams%ROWTYPE; BEGIN team_rec.team_no := 5; team_rec.team_member := Worker('Paul Ocker', 'Accounting'); UPDATE teams SET ROW = team_rec; END; /
The record can also contain collections:
CREATE TYPE Worker AS OBJECT (name VARCHAR2(25), dept VARCHAR2(15)); / CREATE TYPE Roster AS TABLE OF Worker; / CREATE TABLE teams (team_no NUMBER, members Roster) NESTED TABLE members STORE AS teams_store; INSERT INTO teams VALUES (1, Roster( Worker('Paul Ocker', 'Accounting'), Worker('Gail Chan', 'Sales') Worker('Marie Bello', 'Operations') Worker('Alan Conwright', 'Research'))); DECLARE team_rec teams%ROWTYPE; BEGIN team_rec.team_no := 3; team_rec.members := Roster( Worker('William Bliss', 'Sales'), Worker('Ana Lopez', 'Sales') Worker('Bridget Towner', 'Operations') Worker('Ajay Singh', 'Accounting')); UPDATE teams SET ROW = team_rec; END; /
The INSERT, UPDATE, and DELETE statements can include a RETURNING clause, which returns column values from the affected row into a PL/SQL record variable. This eliminates the need to SELECT the row after an insert or update, or before a delete. You can use this clause only when operating on exactly one row.
In the following example, you update the salary of an employee and, at the same time, retrieve the employee's name, job title, and new salary into a record variable:
DECLARE TYPE EmpRec IS RECORD ( emp_name VARCHAR2(10), job_title VARCHAR2(9), salary NUMBER(7,2)); emp_info EmpRec; emp_id NUMBER(4); BEGIN emp_id := 7782; UPDATE emp SET sal = sal * 1.1 WHERE empno = emp_id RETURNING ename, job, sal INTO emp_info; END;
Currently, the following restrictions apply to record inserts/updates:
SET clause in an UPDATE statementVALUES clause of an INSERT statementINTO subclause of a RETURNING clauseRecord variables are not allowed in a SELECT list, WHERE clause, GROUP BY clause, or ORDER BY clause.
ROW is allowed only on the left side of a SET clause. Also, you cannot use ROW with a subquery.UPDATE statement, only one SET clause is allowed if ROW is used.VALUES clause of an INSERT statement contains a record variable, no other variable or value is allowed in the clause.INTO subclause of a RETURNING clause contains a record variable, no other variable or value is allowed in the subclause.PL/SQL binding operations fall into three categories:
SELECT or FETCH statement into PL/SQL variables or host variables.INSERT statement or modified by an UPDATE statement.RETURNING clause of an INSERT, UPDATE, or DELETE statement into PL/SQL variables or host variables.PL/SQL supports the bulk binding of collections of records in DML statements. Specifically, a define or out-bind variable can be a collection of records, and in-bind values can be stored in a collection of records. The syntax follows:
SELECT select_items BULK COLLECT INTO record_variable_name FROM rest_of_select_stmt FETCH { cursor_name | cursor_variable_name | :host_cursor_variable_name} BULK COLLECT INTO record_variable_name [LIMIT numeric_expression]; FORALL index IN lower_bound..upper_bound INSERT INTO { table_reference | THE_subquery} [{column_name[, column_name]...}] VALUES (record_variable_name(index)) rest_of_insert_stmt FORALL index IN lower_bound..upper_bound UPDATE {table_reference | THE_subquery} [alias] SET (column_name[, column_name]...) = record_variable_name(index) rest_of_update_stmt RETURNING row_expression[, row_expression]... BULK COLLECT INTO record_variable_name;
In each statement and clause above, the record variable stores a collection of records. The number of fields in the record must equal the number of items in the SELECT list, the number of columns in the INSERT INTO clause, the number of columns in the UPDATE ... SET clause, or the number of row expressions in the RETURNING clause, respectively. Corresponding fields and columns must have compatible datatypes. Here are several examples:
CREATE TABLE tab1 (col1 NUMBER, col2 VARCHAR2(20)); / CREATE TABLE tab2 (col1 NUMBER, col2 VARCHAR2(20)); / DECLARE TYPE RecTabTyp IS TABLE OF tab1%ROWTYPE INDEX BY BINARY_INTEGER; TYPE NumTabTyp IS TABLE OF NUMBER INDEX BY BINARY_INTEGER; TYPE CharTabTyp IS TABLE OF VARCHAR2(20) INDEX BY BINARY_INTEGER; CURSOR c1 IS SELECT col1, col2 FROM tab2; rec_tab RecTabTyp; num_tab NumTabTyp := NumTabTyp(2,5,8,9); char_tab CharTabTyp := CharTabTyp('Tim', 'Jon', 'Beth', 'Jenny'); BEGIN FORALL i IN 1..4 INSERT INTO tab1 VALUES(num_tab(i), char_tab(i)); SELECT col1, col2 BULK COLLECT INTO rec_tab FROM tab1 WHERE col1 < 9; FORALL i IN rec_tab.FIRST..rec_tab.LAST INSERT INTO tab2 VALUES rec_tab(i); FOR i IN rec_tab.FIRST..rec_tab.LAST LOOP rec_tab(i).col1 := rec_tab(i).col1 + 100; END LOOP; FORALL i IN rec_tab.FIRST..rec_tab.LAST UPDATE tab1 SET (col1, col2) = rec_tab(i) WHERE col1 < 8; OPEN c1; FETCH c1 BULK COLLECT INTO rec_tab; CLOSE c1; END;
|
 Copyright © 1996, 2002 Oracle Corporation. All Rights Reserved. |
|
